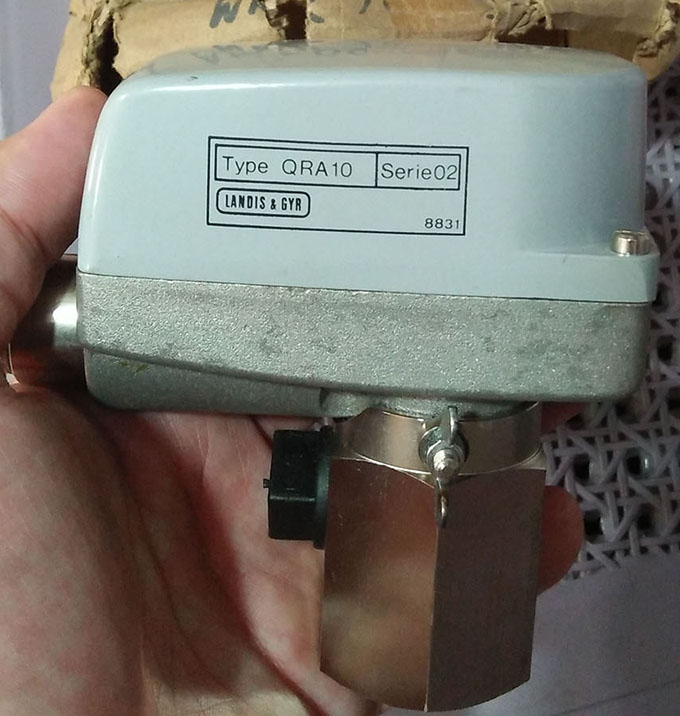

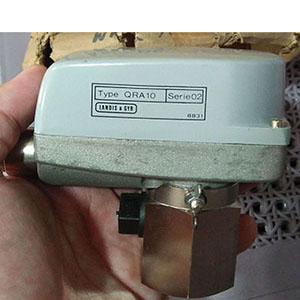

QRA10 - UV Flame Detector

Type: QRA10 (Serie 02)

For use with: LGB2... / LGB4... with AGQ1... LFL... LFE1... LFE10... LMG... with AGQ2... LME21… / LME22… / LME39… with AGQ3… LMV2… / LMV3... LMV5… with AGQ1…

Operating mode: Intermittent

Brand: Landis and Gyr

Origin: Germany

Condition: New

Availability: 1 pc

Price: Available on request

Application

The flame detectors are used for the supervision of gas flames, yellow- or blue-burning oil flames and for ignition spark proving.

Function

With this type of flame supervision, the UV radiation emitted by gas or oil flames is used to generate the flame signal.

The radiation detector consists of a UV-sensitive cell with 2 electrodes, which ignite when illuminated with radiation in the 190...270 nm range of the spectrum, thereby triggering a current in the flame detector circuit.

The UV cell does not respond to glowing firebrick in the combustion chamber, daylight or light from the boiler room illumination.

Higher ambient temperatures reduce considerably the cell's life.



















For use with burner controls: LGB2... / LGB4... with AGQ1... LFL... LFE1... LFE10... LMG... with AGQ2... LME21… / LME22… / LME39… with AGQ3… LMV2… / LMV3... LMV5… with AGQ1…

Operating mode: Intermittent

Senstivity: Normal

Mechanical design: Die-cast aluminium housing

Degree of protection: IP 54

Mounting position: optional

Weight: approx. 740 g

Temperature range: -20...+60 °C

Humidity: < 95 % r.h.

For more technical information, please see data sheet.














If you have any questions about this product please email us at saadwaheed09@gmail.com
