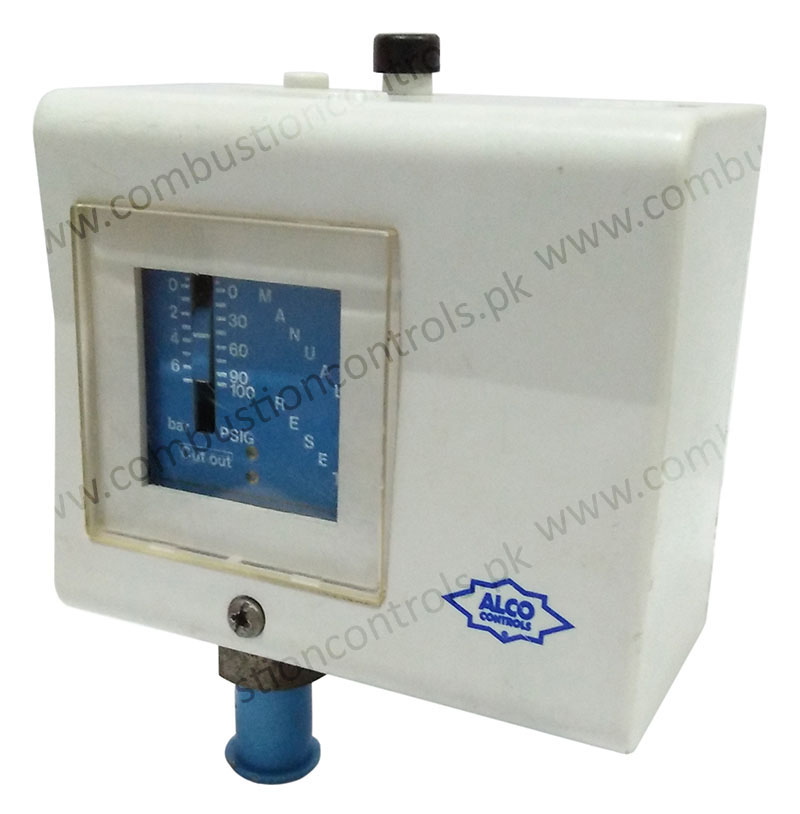

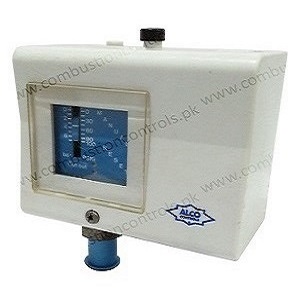

PSA-U3A - Static Pressure Switch

Type: PSA-U3A

Use: Monitoring of flow failure in pumps, chillers, valves etc.

Range: -0.5 to 7 bar (100 psig)

PCN: 4 715 148

Brand: Alco Controls

Condition: New

Availability: 2 pcs in stock

Price: Available on request

Features
  • Liquid pressure switch suitable for the monitoring of flow failure in pumps, chillers, valves etc.
  • Adjustable pressure range
  • Range in units bar and psig
  • High rated SPDT contacts for all versions
  • Manual toggle for system checkout and override
  • Standard pressure connection 7/16"-20 UNF for 1/4" SAE male flare connection
  • Manual reset version
































    • Pressure range: -0.5...7 bar

    Pressure connector: 7/16"-20 UNF male

    Ambient temperature (operation): -50...+70 °C

    Medium temperature range: -50...+70 °C

    Type of contacts: 1 x SPDT contact

    Medium compatibility: HFC, HCFC

    For more information on technical data, please see data sheet.

























    If you have any questions about this product please email us at saadwaheed09@gmail.com
