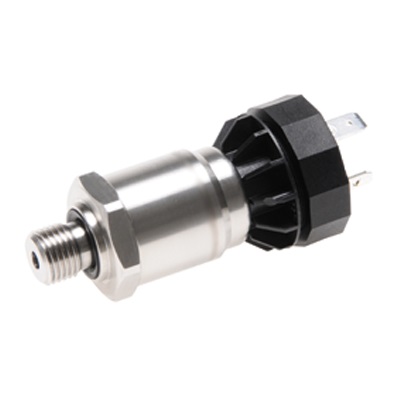

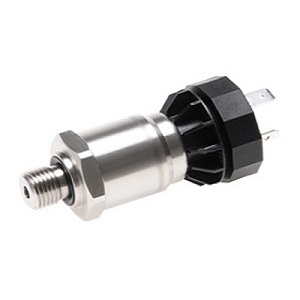

520.941S031401 - Pressure Transmitter

Type: 520.941S031401

Pressure range: 0 - 100 bar

Application: Standard

Output/power supply: 4 - 20 mA / 7 ... 33 VDC

Brand: Huba Control

Origin: Switzerland

Price: Available on request

The compact type 520 pressure transmitter is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded.

This transmitter meets the high burst protection demands and is suitable for the use in all types refrigrents including ammonia.

Features
  • Compact, rugged construction
  • Welded without sealing parts, no elastomer seals
  • Large selection of connections available
  • Saving time by quick cable mounting by the customer with swift connector.




























    • Specifications

    Pressure mode: Relative

    Pressure range: 0 - 100 bar

    Electrical connection: Connector DIN EN 175301-803-A (delivery without female connector)

    Pressure connection: G1/4 sealed at back DIN 3852-E with profile seal ring in FPM

    Material pressure connection: Stainless steel 1.4404 / AISI 316L





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
