P7810C1018 - PressureTrol Controller

Model: P7810C1018

Power input: 120 VAC

Pressure range: 0 to 150 psig

Maximum setpoint: 150 psig

Differential: 5 to 20 psig

Pressure connector: 1/2 in. NPT

Product category: Pressure Controllers

Brand: Honeywell

Condition: Used / lotted

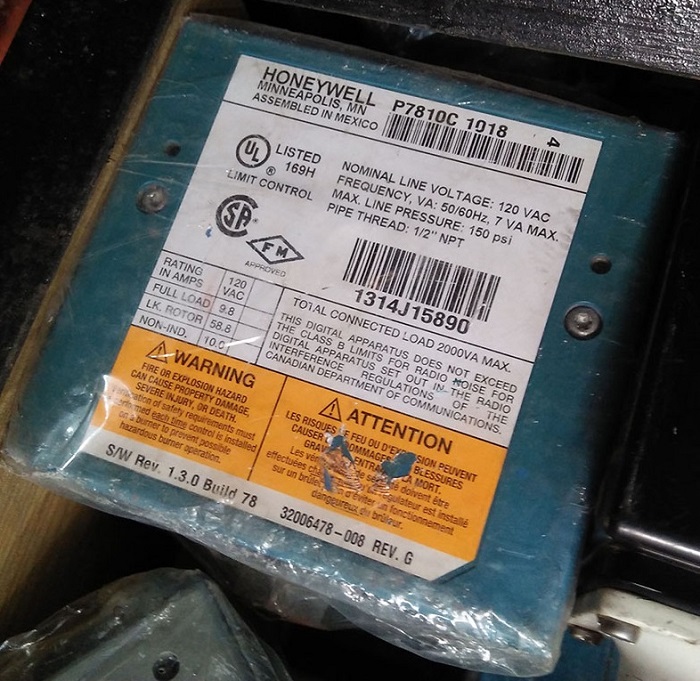

Stock picture: P7810C1018

Stock: 1 pc (subject to availability)

Price: Available on request

Location: Brands > Honeywell > P7810C1018

Application

The P7810C PressureTrol Controller is a line voltage pressure controller for pressure systems up to 300 psi. The P7810C provides On/Off Control, High Limit and 4 to 20 mA modulation. Use only with steam, air or non-combustible gases that do not corrode the pressure sensing element.












Model No.: P7810C1018

Power input: 120 VAC

Power consumption: 7 VA max.

Pressure range: 0 to 150 psig

Maximum setpoint: 150 psig

Differential: 5 to 20 psig

Sensor material: 304 stainless steel

Pressure connector: 1/2 in. NPT

Mounting position: Upright

Weight: 1.15 kg

Product category: Pressure Controllers

For more information on technical data, please see data sheet.














If you have any questions about this product please email us at saadwaheed09@gmail.com
