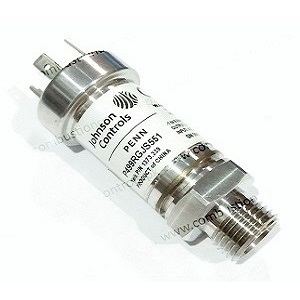

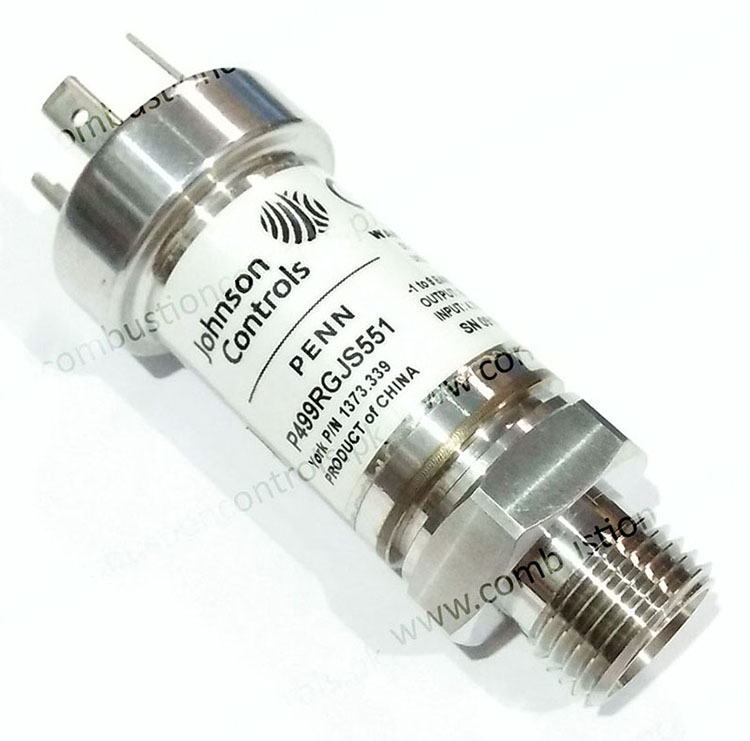

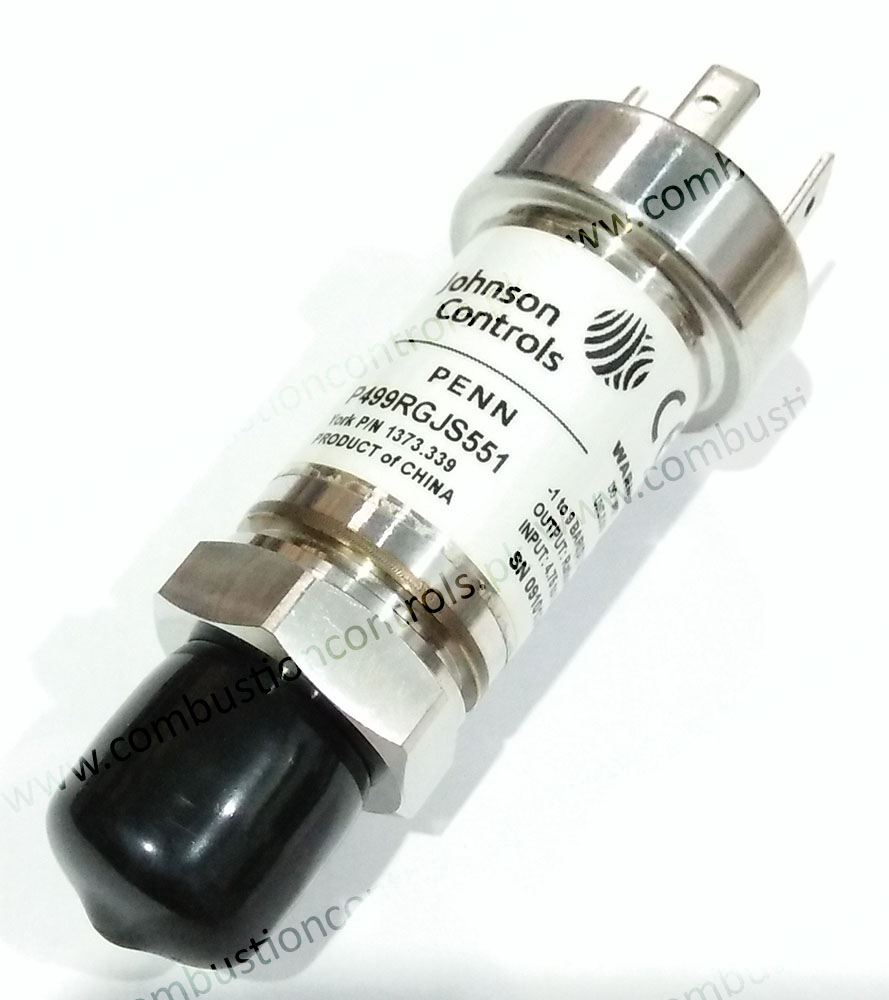

P499RGJS551 - Ratiometric Pressure Transducer

Product code: P499RGJS551 (ratiometric version)

Output signal: 0.5 to 4.5 VDC ratiometric

Pressure connection: M16 x 1.5 Ermeto External Thread

Pressure range: -1 to 9 bar

York P/N: 1373.339

Brand: Johnson Controls / Penn

Condition: New

Price: Available on request

Qty in stock: 1 pc

Location: Brands > Johnson Controls > P499RGJS551

Product category: Pressure Transducers

P499 Series Electronic Pressure Transducers

The P499 Electronic Pressure Transducers are compact, economical, rugged, direct-mount pressure transducers for use in commercial refrigeration and air conditioning applications. These transducers produce an analog signal based on the sensed pressure.

The P499 transducers operate with any corrosive or non-corrosive pressure medium that is compatible with 17-4PH stainless steel, including water, condensate, carbon dioxide, glycol, most refrigerants, including ammonia, and many other compatible fluids and gases.

0.5 VDC to 4.5 VDC ratiometric versions

The ratiometric versions of the P499 transducer receive a constant 5 VDC (nominal) supply voltage and vary the output signal voltage, based on the sensed pressure. The output voltage varies from 10% to 90% of the supply voltage, providing a 0.5 VDC to 4.5 VDC (nominal) signal.

Product code: P499RGJS551 (ratiometric version)

Output signal: 0.5 to 4.5 VDC ratiometric

Pressure connection: M16 x 1.5 Ermeto External Thread

Electrical connection: DIN 43650 connector

Pressure mode: Sealed gauge (0.75% accuracy)

Pressure range: -1 to 9 bar

Mounting style: Direct-mount

Supply voltage: 5 ±0.25 VDC

Operating temperature: -40...+85 °C

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
