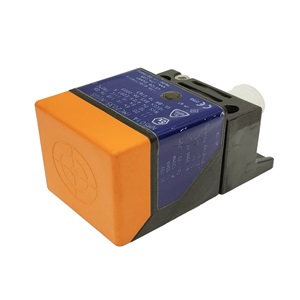

NM501A IMC2035-N/US IFM Electronic Inductive Sensor, IFM NM501A

NM501A - IMC2035-N/US Inductive Sensor

Type: IMC2035-N/US

Electrical design: NAMUR

Output function: Normally closed

Sensing range: 35 mm

Supply voltage: 7.5...30 V DC

Special feature: Gold-plated contacts

Product Category: Inductive Sensors (listed alphabetically)

Brand: Ifm Electronic

Origin: Germany

Condition: New

Price: Available on request

Note: Product picture listed is original stock picture.

NM501A - IMC2035-N/US/2G/1D Inductive NAMUR Sensor

For applications in hazardous areas

For connection to intrinsically safe circuits

Long sensing range for use in conveying

Robust housing for use in harsh inductrial environments

Five positions of the sensing face selectable

Yellow LED switching display

Electrical design: NAMUR

Output function: Normally closed

Sensing range: 35 mm

Housing: Rectangular

Dimensions: 40 x 40 x 66 mm

Special feature: Gold-plated contacts

Connection to switching amplifiers: Yes

Supply voltage: 7.5...30 V DC (when used outside hazardous area)

Switching frequency DC: 100 Hz

Switching status display: 1 x LED, yellow

Ambient temperature: -20...+70 °C

Protection: IP 67

Mounting: Non-flush mountable

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
