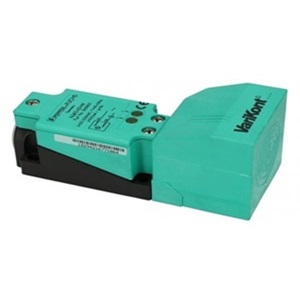

NJ40+U1+A2 (084566) - Inductive Sensor

Type: NJ40+U1+A2

Part no.: 084566

Switching element function: PNP (NO/NC)

Rated operating distance: 40 mm

Operating voltage: 10 ... 60 V

Brand: Pepperl+Fuchs

Origin: Made in Germany

Condition: New

Availability: Out of stock

Price: Available on request

Inductive Sensors

Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. As a pioneer and market leader, Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets.

Features:
  • Comfort series
  • 40 mm non-flush
  • Reverse polarity protection



























    • Switching element function: PNP NO/NC

    Rated operating distance: 40 mm

    Installation: Non-flush

    Output polarity: DC

    Assured operating distance: 0...32.4 mm


    Operating voltage: 10...60 V

    Switching frequency: 0...100 Hz

    Short-circuit protection: pulsing

    Operating voltage indicator: LED, green

    Switching state indicator: LED, yellow


    Ambient temperature: -25...+70 °C

    Connection type: screw terminals

    Sensing face: PBT


    Degree of protection: IP68

    Weight: 345.5g


    For more information on technical data, please see data sheet.























    If you have any questions about this product please email us at saadwaheed09@gmail.com
