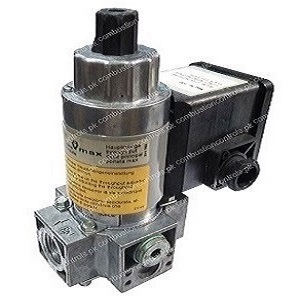

MVDLE 205/5 RP1/2 - Slow opening valve

Type: MVDLE 205/5

Nominal diameter: Rp1/2

Max. operating pressure: 360 mbar (36 kPa)

Voltage: 230 VAC 50/60Hz

Mag. Nr.: 100

Art. Nr.: 213793

Brand: Dungs, Germany

Condition: Lotted

Stock: Subject to availability

Price: Available on request

Technical description

The DUNGS safety solenoid valve MVDLE/5 is a single-stage automatic shut-off valve as per EN 161 for gas burners and gas appliance.

  • Max. operating pressure up to 360 mbar (36 kPa)
  • Normally closed
  • Slow opening with adjustable fast stroke for start gas volume
  • Main volume adjustable

    • Application

    The solenoid valve is used for securing, limiting, shutting off and releasing gas supply to gas burners and gas appliances. The DUNGS safety solenoid valve MV... is suitable for gases of families 1, 2, 3 and other neutral gaseous media.















    Specifications

    Nominal diameter: Rp1/2

    Max. operating pressure: 360 mbar (36 kPa)

    Solenoid valve: Valve as per EN 161, Class A, Group 2, single-stage mode

    Closing time: < 1 s

    Opening time: 20s approx.

    Fast stroke: Adjustable

    Main volume adjustment: Manually adjustable

    Voltage/frequency: 230 VAC (+10 % - -15 %); 50-60 Hz

    Ambient temperature: -15 °C to +60 °C

    For more information, please refer to data sheet.

    If you have any questions about this product please email us at saadwaheed09@gmail.com
