MCR-PT100-U - MCR-PT100-U 2810340 Phoenix Contact Temperature Transducer

MCR-PT100-U - Temperature Measuring Transducer

Type: MCR-PT100-U

Art. Nr.: 2810340

Input: PT 100; 2-, 3-, 4-wire

Supply Voltage: 20...30 V DC

Output Signal: 0...10 V

Supply Current (PT100): 1 mA

Brand: Phoenix Contact

Stock: 1 piece (subject to prior availability)

Price: Available on request

Product Location: Brands > Phoenix Contact > MCR-PT100-U (listed alphabetically)

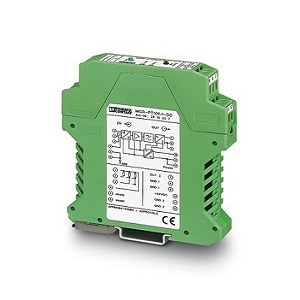

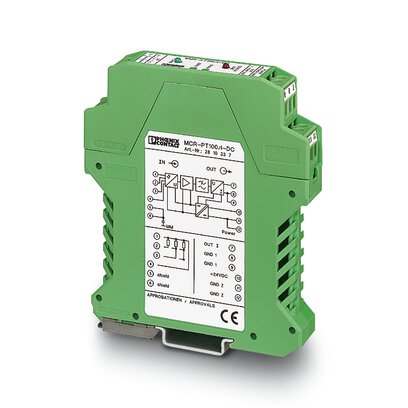

MCR-PT100-U - Configurable Temperature Measuring Transducer for PT100

MCR-PT-100 temperature measuring transducers convert the measured values of the PT-100 sensor into electrically standardized analog signals. The sensor is supplied from the module with a low current. The resultant voltage drop is amplified in the module and converted into a signal, which is propoetional to the temperature. To linearize the characteristics, the measuring signal is fed back to the input. The output circuit provides the standardized analog signal.

Input: PT 100 (IEC 751/EN 60 751); 2-, 3-, 4-wire technology

Supply voltage: 20...30 V DC

Max. current consumption: 20 mA

Output Signal: 0...10 V

Max output signal: 15 V

Supply current (PT100): 1 mA

Ambient temperature: -20 °C to +65 °C

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
