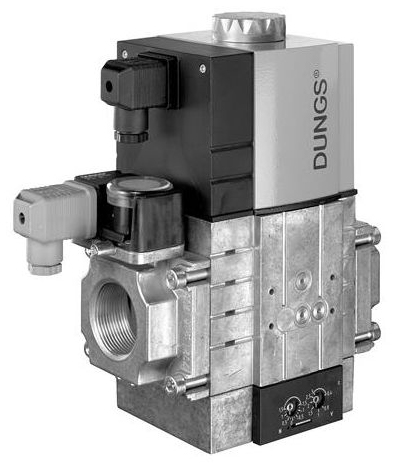

MBC-700-SE S02 24VDC GasMultiBloc

Type: MBC-700-SE S02

Nominal diameter: Rp 1 1/2 flange with pipe threads

Voltage: 24 VDC

Max. operating pressure: 360 mbar (36 kPa)

Brand: DUNGS, Germany

Availability: In Stock

Price: Available on request

Technical description

The DUNGS multiple actuator MBC...SE integrates filter, valves and servo pressure regulator in one compact unit:

  • Dirt trap: microfilter
  • 2 Solenoid valves up to 360 mbar (36 kPa) to DIN EN 161 Class A Group 2, fast opening
  • Servo pressure regulator unit to DIN EN 88 Class A Group 2
  • Precision regulation of outlet pressure
  • For optimal outlet pressure stability
  • Flanged joints with pipe threads to ISO 7/1 or NPT
  • Easy to install
  • Low weight

  • The modular system permits individual solutions with valve proving system, min./max. pressure switches and pressure limiters. High flow rates at low pressure differences.


    Application

    The servo pressure regulatorpermits optimal mixture formation in forced air burners and premix burners in conjunction with mechanical or electronic integrated gas-air regulation units; this applies to modulating and multi-stage floating operation mode. Suitable for gases of families 1, 2, 3 and other inert gaseous media.


    Specifications

    Nominal diameter: Rp 1 1/2 flange with pipe threads as per ISO 7/1

    Max. operating pressure: 360 mbar (36 kPa)

    Inlet pressure range: 15 - 100 mbar (1.5 - 10 kPa)

    Burner pressure range pBr: 0 ± 2 mbar (0 ± 0.2 kPa)

    Media: Gases of families 1, 2, 3 and other inert gaseous media

    Ambient temperature: -15 °C to +70 °C (Do not operate MB-D below 0°C in liquid gas systems)

    Dirt trap: Micro-filter made of chopped-strand nonwoven fabric. Filter replaceable without removing fitting

    Pressure switch: GW 10 A5

    Servo pressure regulator: Servo pressure regulator with adjustable burner pressure, as per DIN EN 88 Class A, Group 2

    Solenoid valve V1, V2: Valve as per DIN EN 161 Class A Group 2, fast closing, fast opening

    Measuring gas connection: G 1/8 as per DIN ISO 228, at inlet and outlet flanges.

    Voltage: (DC) 24 V

    Solenoid No.: 042/P
