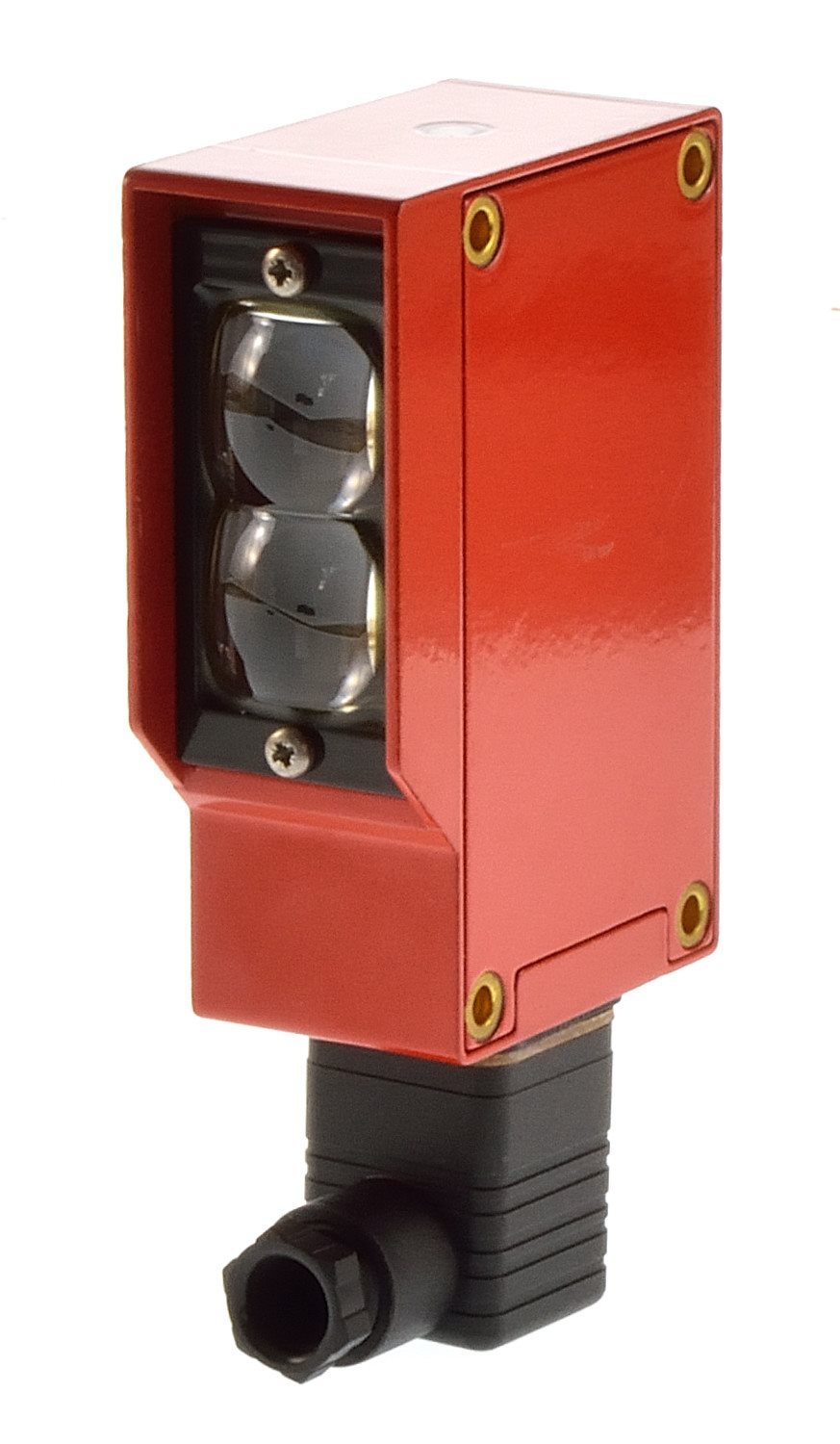

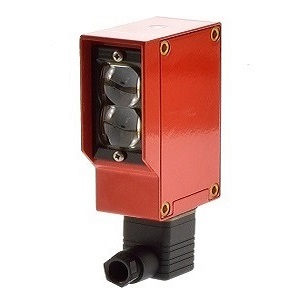

LS 85/4 E - Throughbeam Photoelectric Sensor

Type: LS 85/4 E

Max. operating range: 213.25 feet (65 meters)

Optimum range: 164.04 feet (50 meters)

Operating voltage range: 10-30 VDC

Output type: PNP

Brand: Leuze Electronic

Stock: Subject to availability

Price: Available on request

Product location: Brands > Leuze Electronic > LS 85/4 E

LS 85 Throughbeam Photoelectric Sensors

  • Voltage range: 10 ... 30 VDC and 24 VDC
  • Light switching and delay before start-up for optimal adaptation to applications
  • Connection via M12 connector or standard plug with screw connector up to 1.5mm²



































  • Power type: DC

    Beam type: Infrared

    Max. range: 213.25 feet

    Optimum range: 164.04 feet

    Operating voltage range: 10-30 VDC

    Number of outputs: 1

    Output type: PNP

    Operating mode: Light operate

    Connection type: DIN connector (standard)

    Max. load current: 0.1 Amps

    Matching source unit: LS-85/2-SE-LUZE

    Weight: 350g

    Operating temperature limit: -20 °C to +60 °C

    For more information on technical data, please see data sheet.
