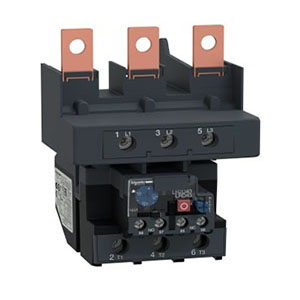

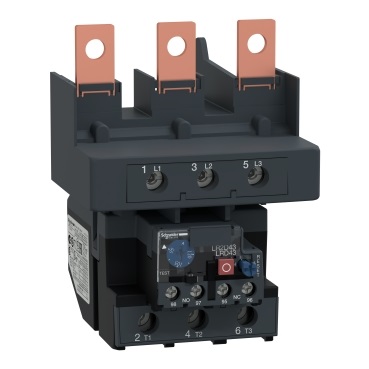

LRD4367 - Thermal Overload Relay

Type: LRD4367

Relay application: Motor protection

Thermal overload class: Class 10A IEC 60947-4-1

Thermal protection adjustment range: 95...120 A

Rated operational voltage: 1000 V AC 0...400 Hz

Product category: Overload Relays (listed alphabetically)

Brand: Telemecanique

Condition: New

Quantity: 1 piece (subject to availability)

Price: Available on request

Location: Brands > Telemecanique > LRD4367 (listed alphabetically)

LRD4367

LRD4367 - TeSys Deca thermal overload relay , 95...120A , class 10A, 1000 V AC 0...400 Hz power circuit IEC 60947-4-1.

Features:
  • Differential thermal overload relay
  • For motor protection application
  • AC/DC Network type
  • Thermal protection adjustment range 95...120 A
  • Thermal overload class 10A IEC 60947-4-1
  • 1000 V AC 0...400 Hz power circuit IEC 60947-4-1



























    • Relay application: Motor protection

    Thermal overload class: Class 10A IEC 60947-4-1

    Thermal protection adjustment range: 95...120 A

    Network frequency: 0...400 Hz

    Auxiliary contact composition: 1 NO + 1 NC

    Rated operational voltage: 1000 V AC 0...400 Hz power circuit IEC 60947-4-1

    Control type: Red push-button stop / Blue push-button reset

    Ambient operating temperature: -20...+60 °C

    Net weight: 0.9 kg (excluding packing)


    For more information on technical data, please see data sheet.























    If you have any questions about this product please email us at saadwaheed09@gmail.com
