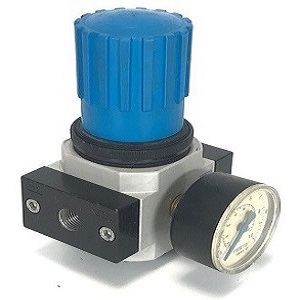

LRP-3/8-D-MIDI - Festo Pressure Regulator

Type: LRP-3/8-D-MIDI

Pneumatic connection: 3/8 NPT

Design: Directly actuated diaphragm regulator

Input pressure: 1...16 bar

Pressure regulation range: 0.5...12 bar

Port connection: G1/4 (for pressure indication)

Brand: Festo

Condition: New

Qty in stock: 1 pc (subject to availability)

Price: Available on request

Product location: Brands > Festo > LR-3/8-D-MIDI

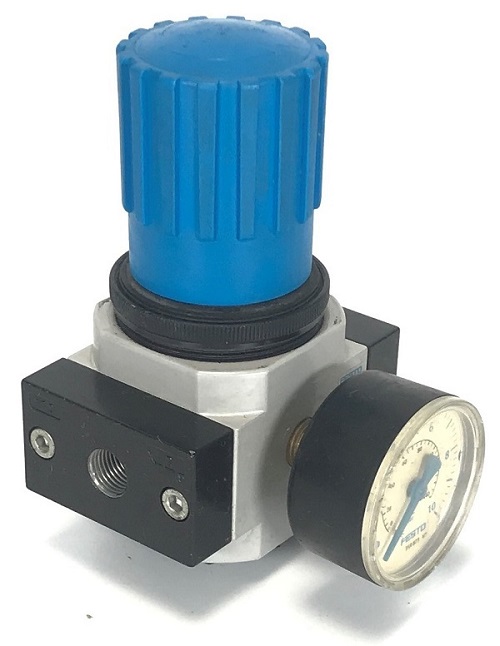

LR-D-MIDI - Festo Pressure Regulator

  • Suitable for front panel mounting
  • Two pressure gauge connections for different fitting options
  • MIDI sizes: Directly actuated diaphragm regulator
  • Good regulating characteristics with minimal pressure hysteresis
  • High flow rate
  • Setting values are secured by locking the rotary knob
  • Return flow option for venting from output 2 to input 1









    • Pneumatic connection: 3/8 NPT

    Operating medium: Filtered compressed air, lubricated or unlubricated, grade of filteration 40 µm

    Design: Directly actuated diaphragm regulator

    Mounting position: Any

    Input pressure: 1...16 bar

    Pressure regulation range: 0.5...12 bar

    Port connection: G1/4 (for pressure indication)

    Pressure indication: Via pressure gauge

    Temperature of medium: -10°C to +60°C

    For more information on technical data, please see data sheet.

    If you have any questions about this product please email us at saadwaheed09@gmail.com
