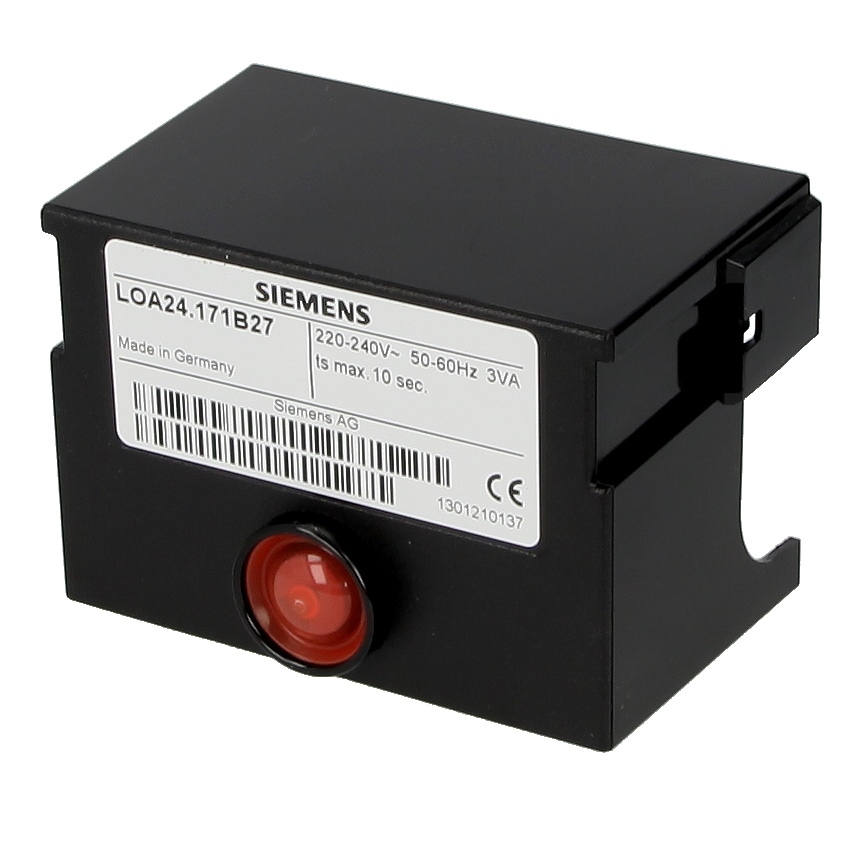

Oil burner control LOA24.171B27

Type: LOA24.171B27

Availability: In Stock

Condition: New

Brand: Siemens

Origin: China

Price: Available on request

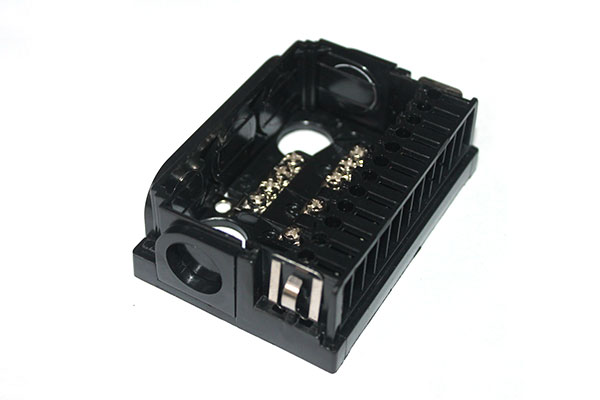

Note: Plug-in base needs to be ordered separately.

Oil Burner Control

Oil burner control for the supervision, startup and control of single- or 2-stage forced draft oil burners in intermittent operation. Oil throughput up to 30 kg/h.

Use

The LOA... are used for the startup, supervision and control of single- or 2-stage forced draft oil bunrers in intermittent operation. Yellow-burning flames are supervised with photoresistive detectors QRB..., blue-burning flames with blue-flame detectors QRC...

– Forced draft oil burners conforming to EN 267

– Oil atomization burners as monoblocks conforming to EN 230

General unit data

Mains voltage: AC 220 V -15 %...AC 240 V +10 %

Mains frequency: 50...60 Hz ±6 %

External primary fuse (Si): 10 A (fast)

Power consumption: approx. 3 VA

Degree of protection: IP 40, must be ensured through mounting

Mounting position: optional

Weight: approx. 180 g

Temperature range: -20...+60 °C

Humidity: < 95 % r.h.

If you have any questions about this product please email us at saadwaheed09@gmail.com or info@combustioncontrols.pk
