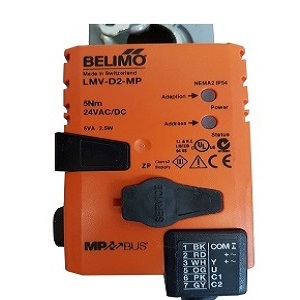

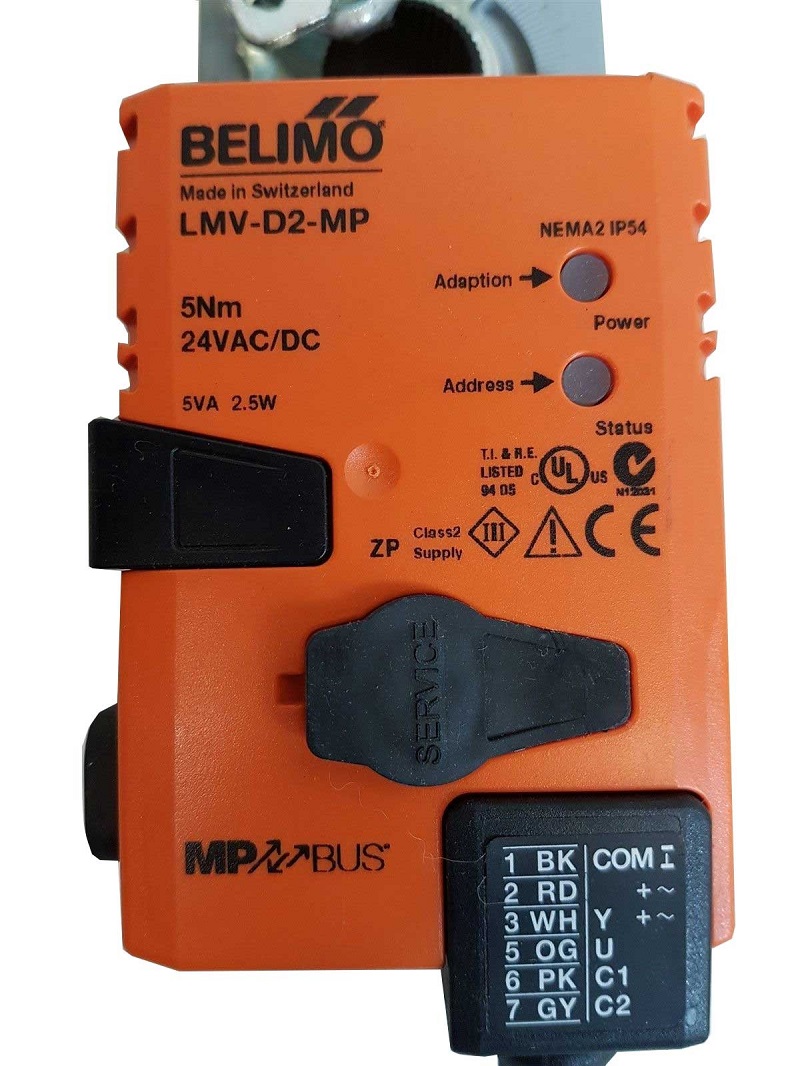

LMV-D2-MP - VAV Compact Controller

Type: LMV-D2-MP

Nominal voltage: 24 V AC/DC, 50/60 Hz

Control function: VAV-CAV, open-loop operation

Torque: 5 Nm

Angle of rotation: 95°

Brand: Belimo

Origin: Made in Switzerland

Condition: New

Stock: Subject to availability

Price: Available on request

VAV-Compact

A pressure sensor, digital VAV controller and damper actuator all in one, providing a VAV-Compact solution with a communications capability for pressure-independent VAV and CAV systems in the comfort zone.

Application

The digital VAV-Compact has PI control characteristics and is used for pressure-independent control of VAV units in the comfort zone.

Nominal voltage: 24 V AC/DC, 50/60 Hz

Control function: VAV-CAV, open-loop operation

Direction of rotation: ccw / cw

Angle of rotation: 95°, with adjustable mechanical or electronic limiting

Torque: 5 Nm

Power consumption: 2.5 W

Weight: 500 g approx.

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
