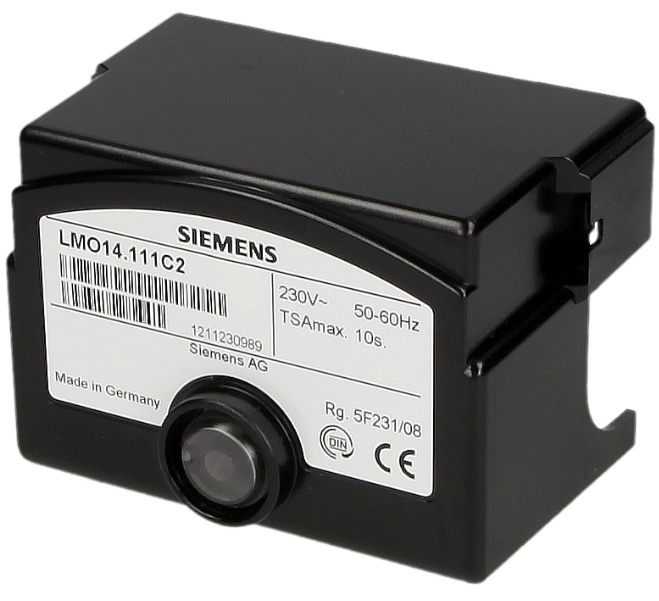

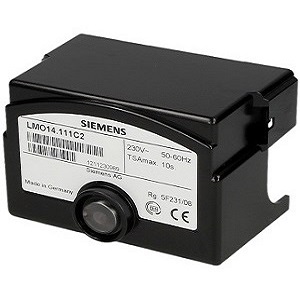

LMO14.111C2 - Oil Burner Controller

Type: LMO14.111C2

Mains voltage: AC 230 V

Fuel valve stages: 1

Burner capacity: <30 kg/h

Ignition safety time (TSA): 10 seconds max.

Flame supervision with: QRB..., QRC...

Brand: Siemens, Germany

Condition: New

Stock: Subject to availability

Price: Available on request

Note: Plug-in base needs to be ordered separately.

LMO14

Microcontroller-based oil burner controls for the startup, supervision and control of forced draft oil burners in intermittent operation. Maximum oil throughput up to 30 kg/h.

Use

The LMO... are designed for the startup and supervision of 1- or 2-stage forced draft oil burners in intermittent operation. Yellow-burning flames are supervised with photo resistive detectors QRB..., blue-burning flames with blue-flame detectors QRC... In terms of housing dimensions, electrical connections and flame detectors, the LMO... are identical with the LOA... oil burner controls.

































General unit data

Mains voltage: AC 230 V -15 / +10 %

Mains frequency: 50...60 Hz ±6 %

External primary fuse (Si): 6.3 A (slow)

Power consumption: 12 VA

Waiting time (tw): 2.5 seconds max.

Ignition safety time (TSA): 10 seconds max.

Fuel valve stages: 1

Burner capacity: <30 kg/h

Flame supervision with: QRB..., QRC...

Mounting orientation: No restrictions

Temperature range: -20...+60 °C

Humidity: < 95 % r.h.

Weight: Approx. 200 g

For more information on technical data, please see data sheet.
