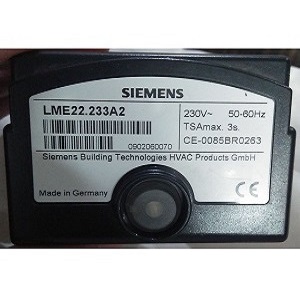

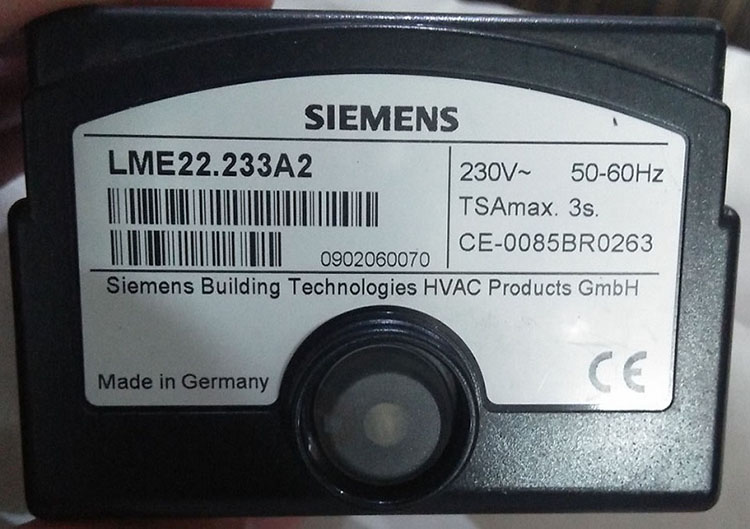

LME22.233A2 - Gas Burner Controller

Type: LME22.233A2

Replacement for: LMG22.233B27

Use: For 2-stage burners, with actuator control

Mains voltage: 230V~ 50-60Hz

Prepurge time (t1): 20 sec. min.

Safety time (TSA): 3 s max.

Plug-in base: AGK11

Brand: Siemens

Stock: 1 pc (subject to availability)

Price: Available on request

Plug-in base: Ordered separately.

LME...

Burner controller for the supervision of 1- or 2-stage gas burners or gas burners of small to medium capacity, with or without fan in intermittent operation.























Replacement for: LMG22.233B27

Flame detector: Ionization probe or flame detector QRA... with AGQ3...

Mains voltage: 230V~ 50-60Hz

Waiting time (tw): 2.5 sec. approx.

Prepurge time (t1): 20 sec. min.

Safety time (TSA): 3 s max.

Power consumption: 12 VA

Plug-in base: AGK11

Weight: Approx. 160 g without plug-in base

Operation temperature range: -20...+60 °C

For more information on technical data, please see data sheet.
