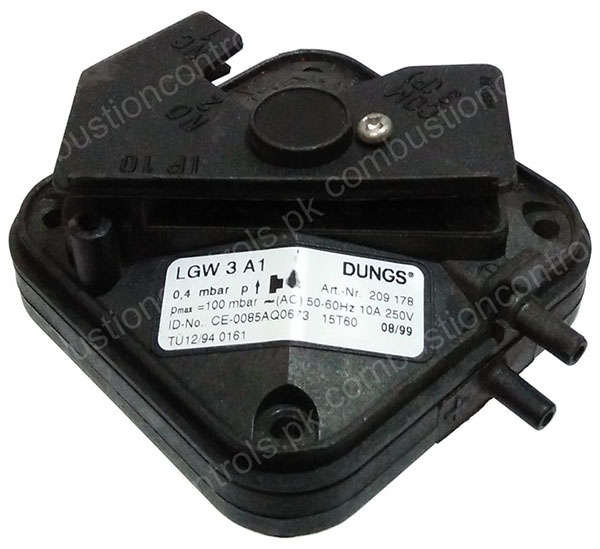

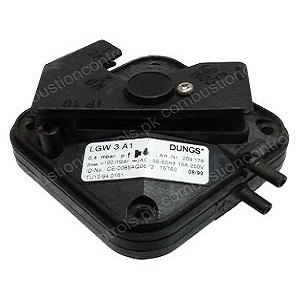

LGW3A1 - Differential Pressure Switch

Type: LGW3A1

Application: Differential pressure monitoring in HVAC systems

Range: 0.4 - 3 mbar

Max. operating pressure: 100 mbar (10 kPa)

Switching difference: ≤ 0.3 mbar

Art.-Nr.: 209178

Brand: Dungs, Germany

Condition: Used

Stock: Subject to availability

Price: Available on request

Location: Brands > Dungs > LGW3A1

Technical description

The LGW...A1 is factory-adjusted differential pressure switch.

  • Suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value set at the factory.
  • Precise function by special switching system mounted in frictionless bearings.
  • Electrical connection by means of a flat-type connector.
  • Compact size.
    • Application

    Differential pressure monitoring in firing, ventilation and air-conditioning systems. The LGW...A1 can be used as a pressure, vacuum or differential pressure switch for air and non-aggressive gases but not for industrial combustion gases.














    Specifications

    Max. operating pressure: 100 mbar (10 kPa)

    Setting range: 0.4 - 3 mbar

    Pressure connection: 4.6 mm dia hose gland

    Medium temperature: -15 °C to +60 °C

    Materials:

    Housing: Polycarbonat

    Switch: Polycarbonat

    Diaphragms: NBR

    Switching contact: Ag (fine silver)

    Art.-Nr.: 209178













    If you have any questions about this product please email us at saadwaheed09@gmail.com
