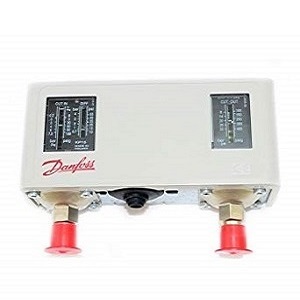

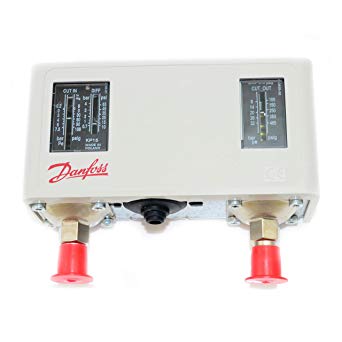

KP15 - Dual Pressure Switch (060-124191)

Type: KP 15

Code no.: 060-124191

Regulating range (LP): -0.2 - 7.5 bar

Differential (LP): 0.7 - 4.0 bar

Regulating range (HP): 8 - 32 bar

Differential (HP): 4 bar

Reset function: Auto

Origin: Made in India

Condition: New

Stock: Subject to availability

Price: Available on request

KP15

Danfoss dual pressure switch is designed for use as a pump guard to control and protect supply water pumps. It combines the functions of a pressure switch and a flow monitoring device. The left hand pressure bellows control the pump pressure. The right hand bellows cut out the pump if the suction pressure is too low. In this way the pump is protected from running dry and consequent bearing damage.




























KP 15 (060-124191)

Regulating range (LP): -0.2 - 7.5 bar

Differential (LP): 0.7 - 4.0 bar

Regulating range (HP): 8 - 32 bar

Differential (HP): 4 bar

Reset function, left side: Auto

Reset function, right side: Auto

Contact function: SPDT

Pressure connection size: 1/4

Pressure connection standard: DIN 8906

Pressure connection type: Flare

Pressure sensing element: Bellows

Gross weight: 0.51 kg

Code no.: 060-124191

For more information on technical data, please see data sheet.
