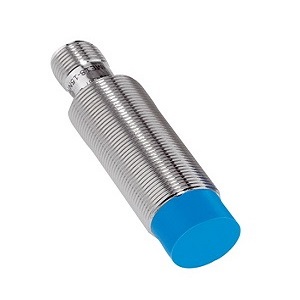

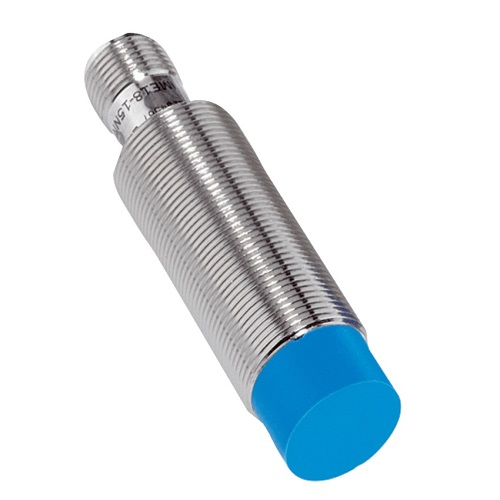

IME18-08NNOZC0S - Inductive Proximity Sensor

Type: IME18-08NNOZC0S

Part no.: 1040962

Thread Size: M18 x 1

Sensing Range (Sn): 8 mm

Switching Output: NPN

Output Function: NC

Supply Voltage: 10...30 VDC

Product Category: Proximity Sensors

Brand: SICK

Condition: New

Cable: Not Inlcuded

Stock: Subject to availability

Price: Available on request

IME18-08NNOZC0S - Inductive Proximity Sensor

  • IME18-08NNOZC0S Inductive Proximity Sensor
  • Part number 1040962
  • M18 x 1 thread size
  • Sensing range Sn 8mm
  • Switching output NPN (NC)
  • Supply voltage 10...30 VDC


















    • Housing: Cylindrical thread design (standard)

    Thread size: M18 x 1

    Diameter: ø 18 mm

    Sensing range (Sn): 8 mm

    Safe sensing range (Sa): 6.48 mm

    Installation type: Non-flush

    Switching frequency: 1,000 Hz

    Connection type: Male connector M12, 4-pin

    Switching output: NPN

    Output function: NC (normally close)

    Electrical wiring: DC 3-wire

    Enclosure rating: IP67

    Supply voltage: 10...30 VDC

    Ambient operating temperature: -25° ... +75°C

    Housing material: Brass, nickle-plated

    Sensing face material: Plastic, PA 66

    Housing length: 69 mm

    Thread length: 42 mm

    Items supplied: Mounting nut, brass, nickle-plated (2x)

    For more information on technical data, please see data sheet.
