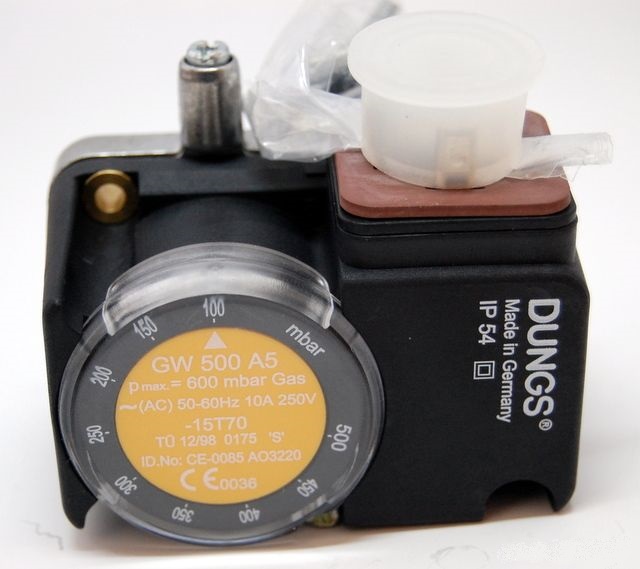

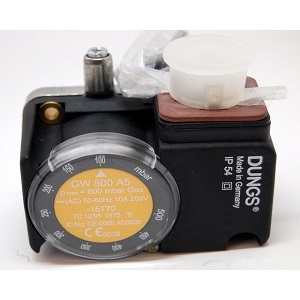

GW500A5 - Gas Pressure Switch

Type: GW500A5

Max. operating pressure: 600 mbar

Setting range: 100 - 500 mbar

Condition: New

Origin: Germany

Price: Available on request

Technical description

The GW...A5 pressure switch is a compact pressure switch as per EN 1854 for DUNGS multiple actuators.

They are suitable for switching a circuit on, off or over on changes in actual pressure relative to the set switching point (reference value).

The switching point can be set easily and quickly using a setting wheel provided with a scale without using a pressure gauge.

Application

Pressure switches for DUNGS multiple actuators GasMultiBloc and DMV double solenoid valve which can be either mounted directly on housing or by using an adapter. Suitable for gases of families 1,2,3 and other neutral gaseous media.


Specifications

Max. operating pressure: 600 mbar (60 kPa)

Pressure connection: O ring flange connection on underside of pressure switch

Measuring connection: ø9, length 10 mm, with screw plug

Ambient temperature: -15 °C to +70 °C

Medium temperature: -15 °C to +70 °C

Storage temperature: -30 °C to +80 °C

Materials

Housing: Aluminium die cast

Switch part: Polyamide

Diaphragms: NBR

Switching contact: Ag

For more information on technical data, please refer to the data sheet.
