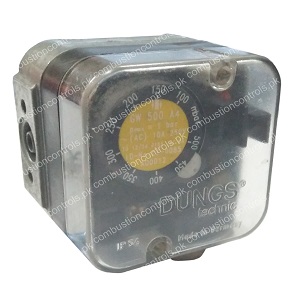

GW500A4 - Gas Pressure Switch

Type: GW500A4

Max. operating pressure: 1 bar

Setting range: 100 - 500 mbar

Qty in stock: 1 pc

Origin: Germany

Price: Available on request

Technical description

The GW...A4 pressure switch is an adjustable pressure switch as per EN 1854 for burners.

It is suitable for closing, opening or switching over a current circuit when the actual pressure value deviates from the specified pressure setpoint.

The switching point can be set easily and quickly using a setting wheel provided with a scale without using a pressure gauge.


Specifications

Max. operating pressure: 1 bar

Pressure connection: G 1/4 internal thread

Ambient temperature: -15 °C to +70 °C

Medium temperature: -15 °C to +70 °C

Storage temperature: -30 °C to +80 °C

Materials

Housing: Aluminium die cast

Switch part: Polyamide

Diaphragms: NBR

Switching contact: Ag

For more information on technical data, please refer to the data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
