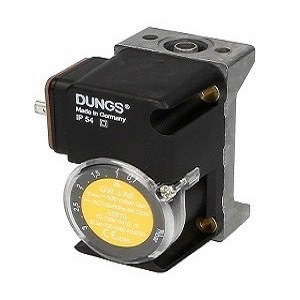

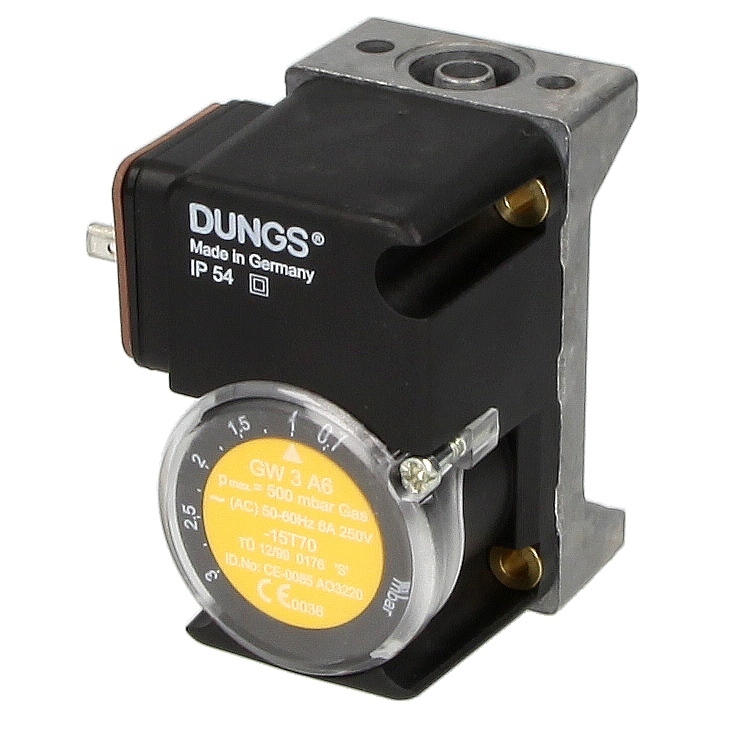

GW3A6 - Air and Gas Pressure Switch

Type: GW3A6

Setting range: 0.7 - 3 mbar

Max. operating pressure: 500 mbar

Brand: Dungs

Origin: Germany

Condition: Used

Stock: Subject to availability

Price: Available on request

Technical description

The pressure switch GW...A6 is adjustable compact pressure switch as per EN for firing systems.

They are suited for switching a circuit on, off or over if the actual pressure value changes compared to the setpoint.

The setpoint (switching point) is set on an adjusting wheel with scale. A test nipple is integrated in the metal housing as standard.


Application

Pressure monitoring in combustion, ventilation and air-conditioning technologies. Suitable for gases of families 1,2,3 and other neutral gaseous media.
























Specifications

Max. operating pressure: 500 mbar (50 kPa)

Pressure connection (Standard): Centrally on housing bottom, G 1/4 inner thread as per ISO 228

Measuring connection: Test nipple integrated in metal housing ø9

Ambient temperature: -15 °C to +70 °C

Medium temperature: -15 °C to +70 °C

Storage temperature: -30 °C to +80 °C

Materials

Housing: Aluminium die cast

Switch part: Polyamide

Diaphragms: NBR

Switching contact: Ag

For more information on technical data, please refer to the data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
