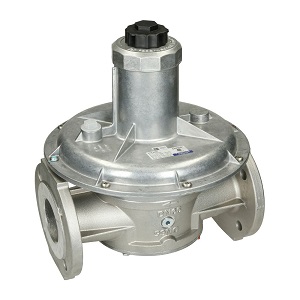

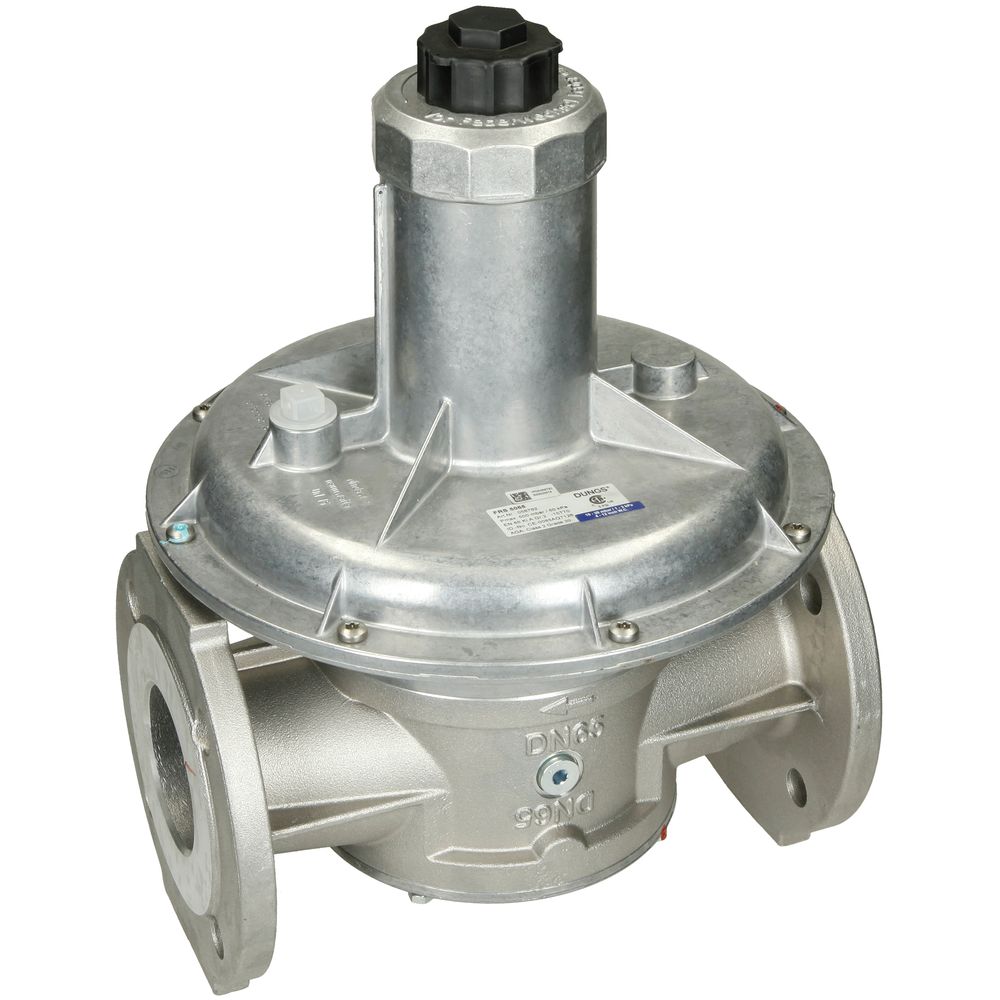

FRS 5065 (223385) - Gas Pressure Regulator

Type: FRS 5065

Art. Nr.: 223385 (Dungs)

Art. Nr.: 640672 (Weishaupt)

Size: DN65 (flanged connection)

Max. input pressure (p1): 500 mbar (0.5 bar)

Setpoint spring range (p2): 25 - 55 mbar

Brand: Dungs, Germany

Condition: Lotted (pictures available on request)

Availability: 1 pc (subject to availability)

Price: Available on request

Product location: Brands > Dungs > FRS 5065

Technical description

The DUNGS pressure regulator, type FRS, has an adjustable setpoint spring. The pressure regulator complies with EN 88 and DIN 3380:

  • Input pressures up to 500 mbar (50 kPa)
  • Setpoint spring range 25 to 55 mbar
  • High flow rate
  • Sturdy, precise and sensitive regulation of regulator output pressure
  • Inlet pressure compensation diaphragms
  • Safety diaphragms
  • Internal pulse for regulator output pressure as standard, optional external pulse connection optional on both sides
  • DN 65 flanged connection
  • Pipe thread as per ISO 7/1
  • Application

    Gas pressure regulator for gas burners and gas equipment. It does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H2S, dry. Suitable for gases of families 1,2,3 and other neutral gaseous media.

    FRS

    Spring-loaded pressure regulator with adjustable setpoint spring. Internal tap of regulator output pressure. External pulse connections optional, suitable for controlling regulator output pressure.












    Specifications

    Flange: Connection flange as per DIN EN 1092-1.

    Max. operating pressure: up to 500 mbar (50 kPa / 0.5 bar)

    Pressure regulator: Pressure regulator as per EN 88, Class A, Group 2, DIN 3380, RG 10

    Input pressure range: + 5 mbar or p2 +2.5 mbar up to 500 mbar

    Output pressure range: 25 - 55 mbar as a factor of adjustable setpoint spring

    Materials of gas conveying parts:

    Housing: Aluminium, steel

    Seals and diaphragm: NBR

    Ambient temperature: -15 °C bis +70 °C

    Installation position: Regulator dome from vertically upright to lying horizontally

    Measuring/ignition gas connections: G 1/4 ISO 228 on both sides in inlet section

    Ventilation pipe: Ventilation pipe only required in special cases.

    Weight: 7.5 kg

    For more information on technical data, please see data sheet.
