EM52R (852-2532-000) TAC Damper Actuator | Combustion Controls

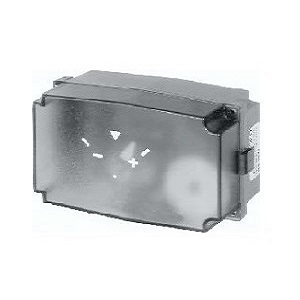

EM52R - Damper Actuator

Type: EM52R

Part number: 852-2532-000

Power supply: 24 VAC 50/60 Hz

Angle of rotation: 90°

Running time: 170 s

Torque: 2.5 Nm

Product category: Actuators

Brand: TAC

Origin: Made in Sweden

Condition: New

Stock: 1 pc (subject to availability)

Price: Available on request

Product location on website: Brands > TAC > EM52R

EM52R - (852-2532-000)

EM52R is controlled by a DC signal between 2-10 V, which corresponds to a 90° torsional angle. The actuator has two control inputs, one normal input X1 and one inverted input X2. If the control signal is applied to the normal input, the output shaft will rotate towards negative (-) position, as the control voltage increases, i.e. it will rotate in counter clockwise direction. If the control signal is applied to the inverted input, the same function can be obtained, as when the control voltage decreases.

EM52R - (852-2532-000)

Power supply: 24 VAC 50/60 Hz

Power consumption: 3 VA

Angle of rotation: 90°

Running time: 170 s

Torque: 2.5 Nm

Operating temperature: -20...50 °C

Weight: 0.3 kg (without packing)

For more technical information, please refer to data sheet.
