Dungs single-stage safety solenoid valve MVD 205/5 | Combustion Controls Burner Components

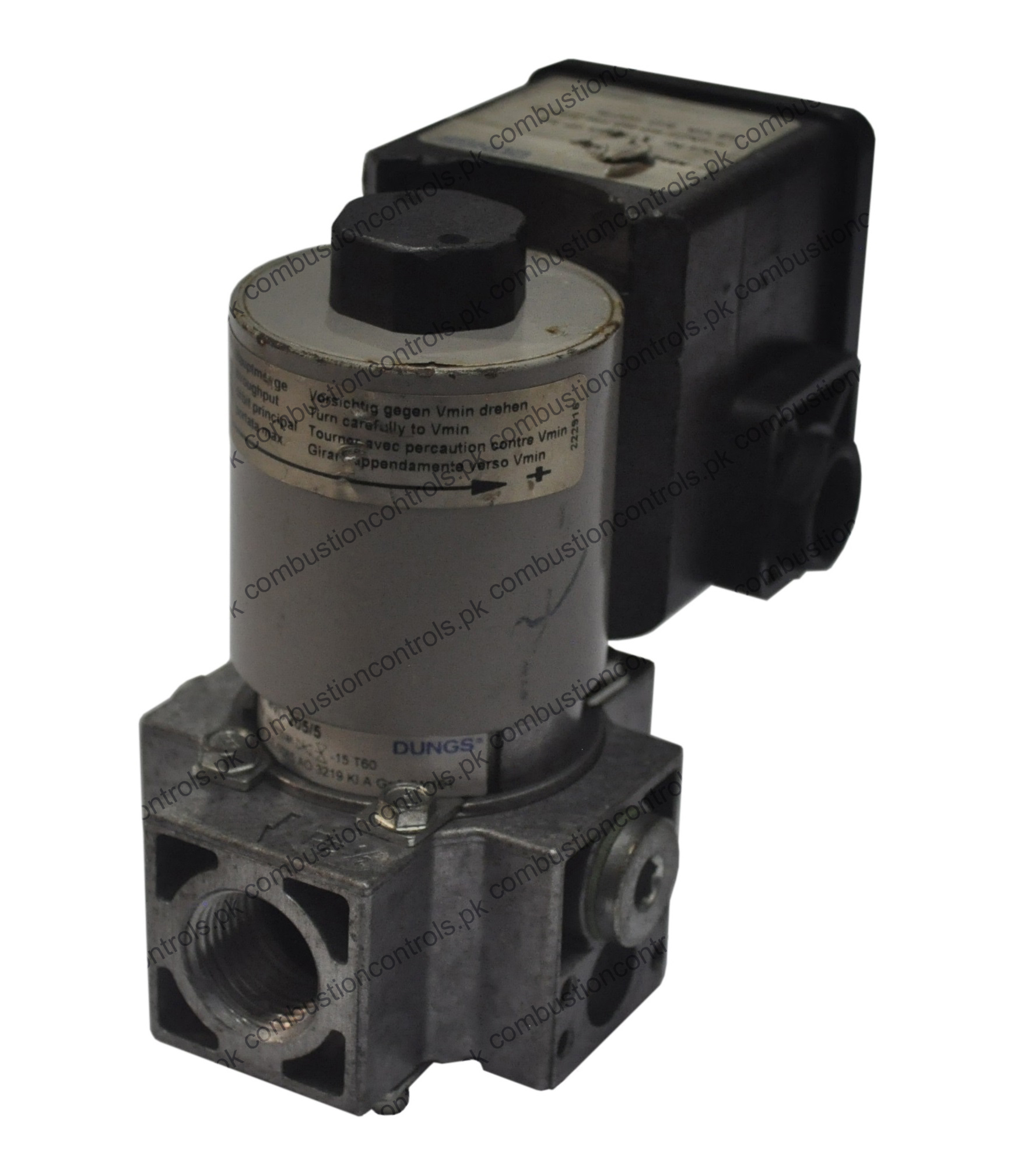

Dungs Single-Stage Safety Solenoid Valve
MVD 205/5 Rp1/2

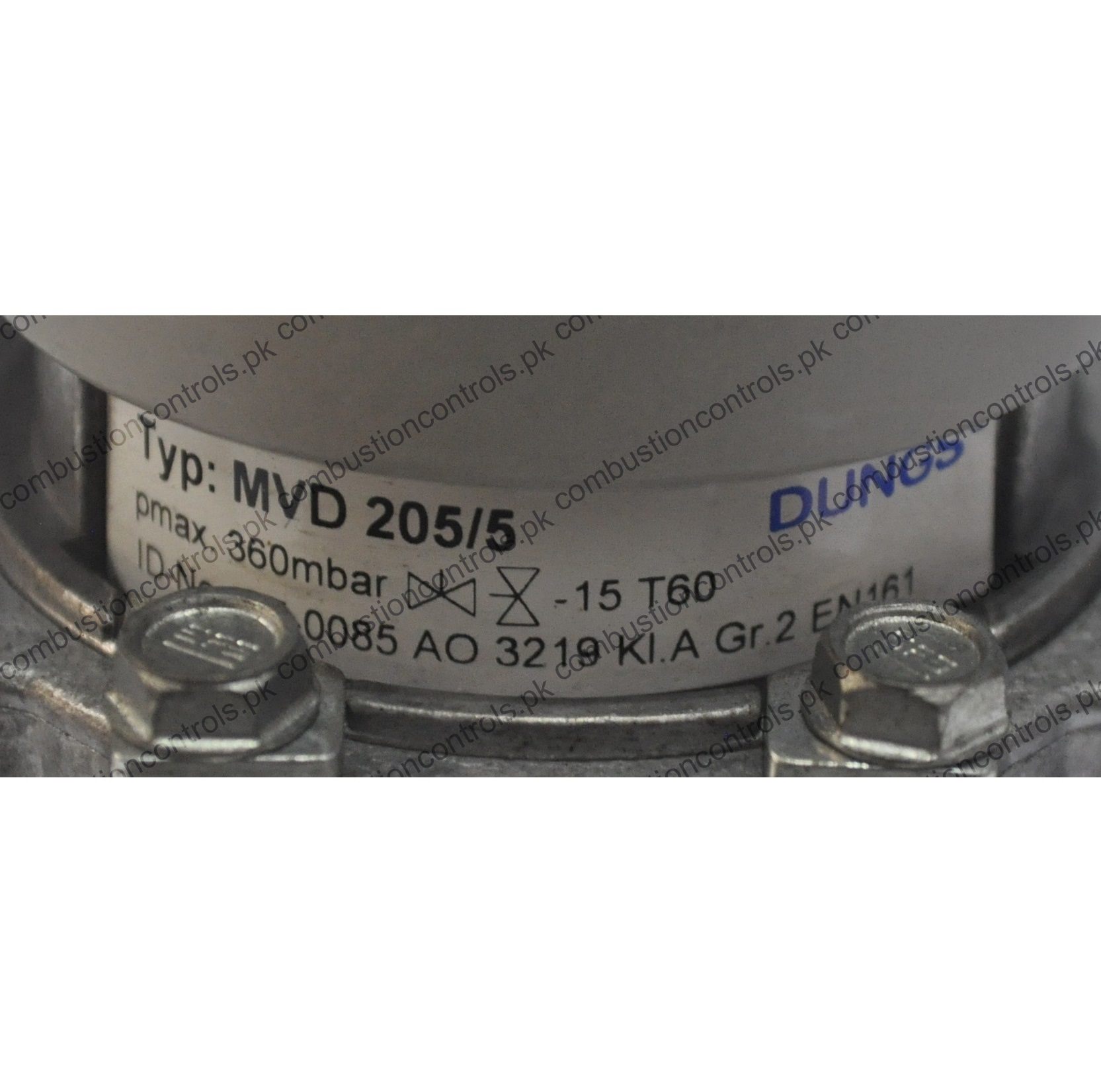

Type: MVD 205/5

Nominal diameter: Rp1/2

Max. operating pressure: 360 mbar (36 kPa)

Voltage: 230 VAC 50/60Hz

Brand: Dungs, Germany

Condition: Lotted

Availability: In Stock

Price: Available on request

Technical description

The DUNGS safety solenoid valve MVD/5 is a single-stage automatic shut-off valve as per EN 161 for gas burners and gas appliance.

Max. operating pressure up to 360 mbar (36 kPa)

Normally closed

Fast opening

Main volume adjustable

Application

The solenoid valve is used for securing, limiting, shutting off and releasing gas supply to gas burners and gas appliances. The DUNGS safety solenoid valve MV... is suitable for gases of families 1, 2, 3 and other neutral gaseous media.

Specifications

Nominal diameter: Rp1/2

Max. operating pressure: 360 mbar (36 kPa)

Solenoid valve: Valve as per EN 161, Class A, Group 2, single-stage mode

Closing time: < 1 s

Opening time: < 1 s

Fast stroke: Adjustable

Main volume adjustment: Manually adjustable on MVD

Voltage/frequency: 230 VAC (+10 % - -15 %); 50-60 Hz

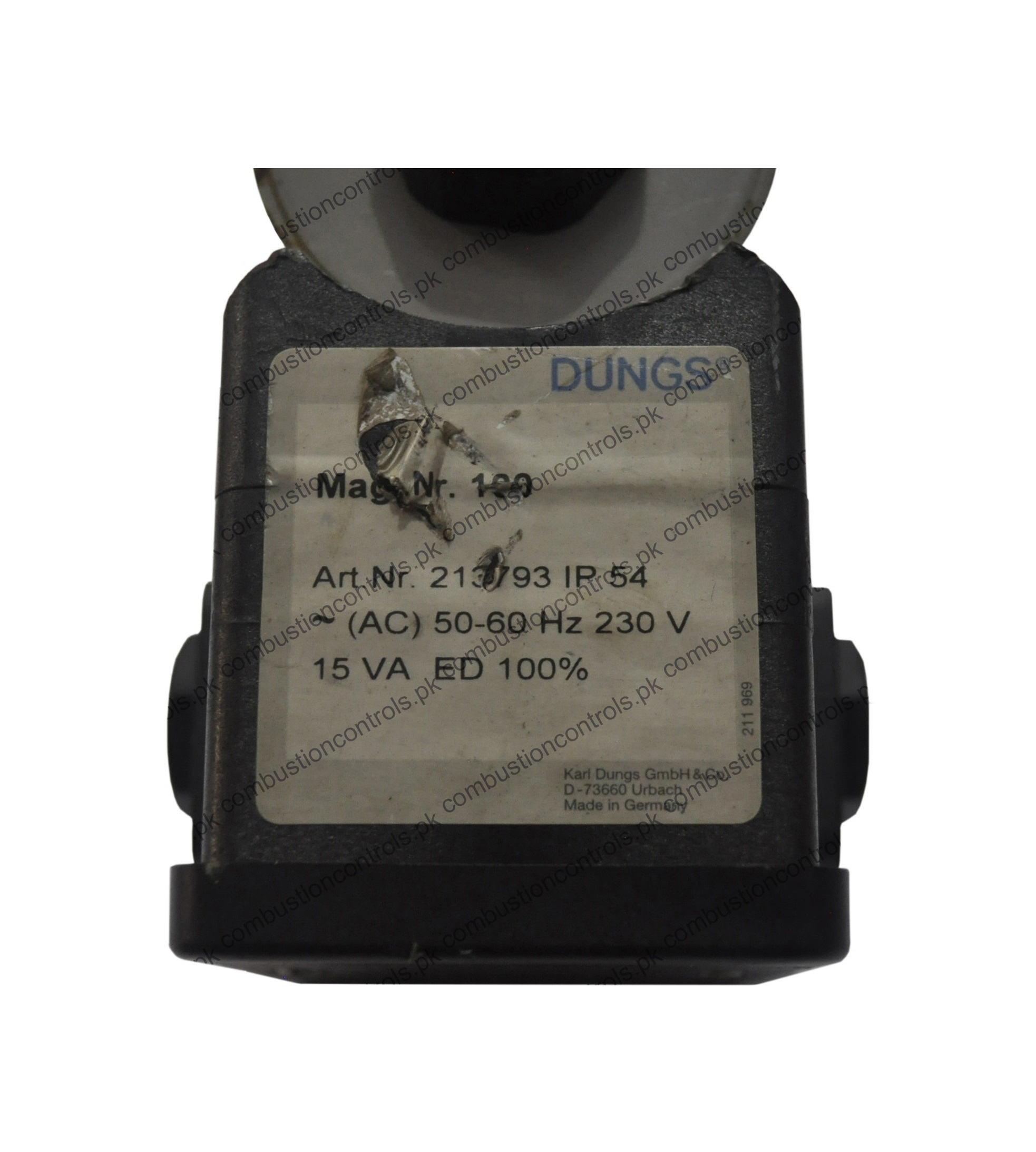

Rating / power consumption: 15 VA

Ambient temperature: -15 °C to +60 °C

If you have any questions about this product please email us at info@combustioncontrols.pk
