Dungs Single-Stage Safety Solenoid Valve
MVD 215/5 Rp 1-1/2

Type: MVD 215/5

Nominal diameter: Rp 1-1/2

Max. operating pressure: 200 mbar (20 kPa)

Voltage: 220 VAC 50/60Hz

Brand: Dungs, Germany

Condition: Lotted

Availability: In Stock

Price: Available on request

Technical description

The DUNGS safety solenoid valve MVD/5 is a single-stage automatic shut-off valve as per EN 161 for gas burners and gas appliance.

  • Max. operating pressure up to 200 mbar (20 kPa)
  • Normally closed
  • Fast opening
  • Main volume adjustable
  • DC solenoid, rectifier wiring with radio interference suppression in terminal box with PG screw union
  • Mountable closed position signal contact to monitor closed position of valve (.../5)
  • Pipe thread as per ISO 7/1
  • Reliable function, rugged and maintenance-free

    • Application

    The solenoid valve is used for securing, limiting, shutting off and releasing gas supply to gas burners and gas appliances. The DUNGS safety solenoid valve MV... is suitable for gases of families 1, 2, 3 and other neutral gaseous media.

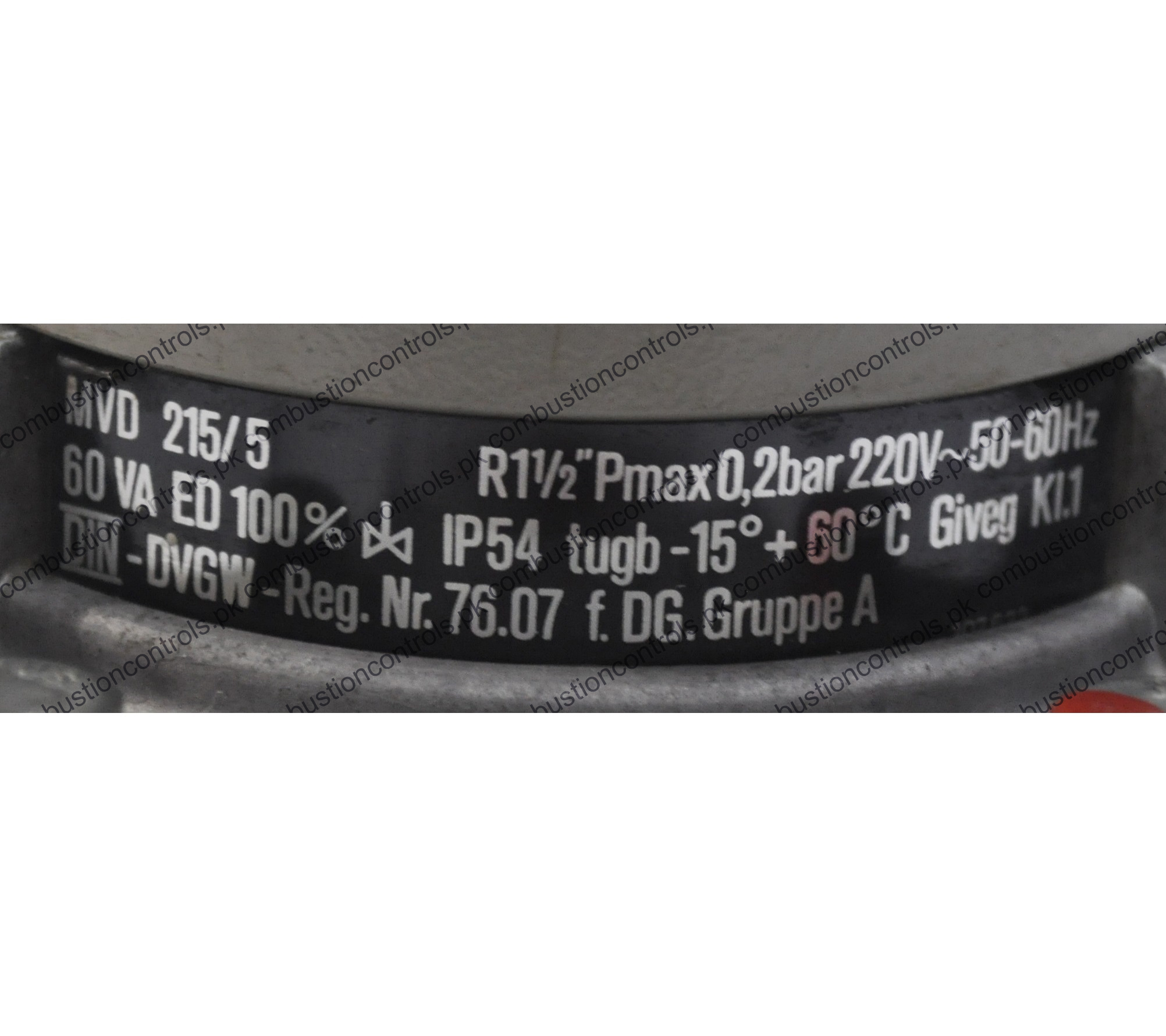

    Specifications

    Nominal diameter: Rp 1-1/2

    Max. operating pressure: 200 mbar (20 kPa)

    Solenoid valve: Valve as per EN 161, Class A, Group 2, single-stage mode

    Closing time: < 1 s

    Opening time: < 1 s

    Fast stroke: Adjustable

    Main volume adjustment: Manually adjustable on MVD

    Voltage/frequency: 220 VAC (+10 % -15 %); 50-60 Hz

    Rating / power consumption: 60 VA

    Switch-on duration: 100 %

    Dirt trap: Sieve installed, mesh width 1 mm

    Ambient temperature: -15 °C to +60 °C

    Weight: 3.675 kg

    If you have any questions about this product please email us at info@combustioncontrols.pk
