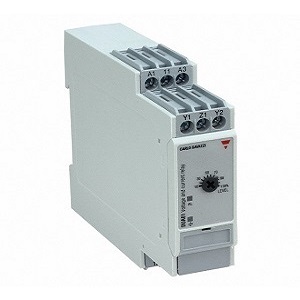

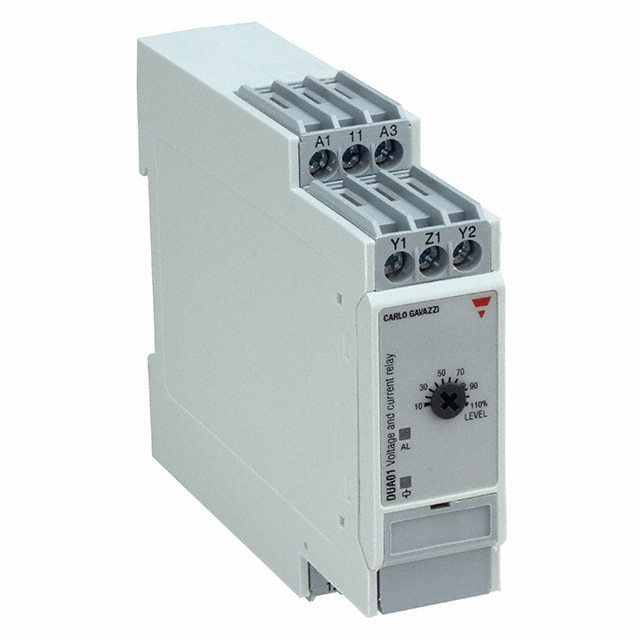

DUA01C748500V - Voltage and Current Relay

Type: DUA01C748500V

Supply voltage: 48 VDC

Output: SPDT relay

Mounting: DIN-rail

Brand: Carlo Gavazzi

Condition: New

Stock: Subject to availability

Price: Available on request

DUA01C748500V

Overvoltage Relay, 48VDC Supply, Multi-Range to 500VAC/DC, 8A SPDT Output, DIN Rail Mount


Features

  • Adjustable hysteresis
  • Programmable latching at set level
  • AC/DC over voltage monitoring relay
  • Adjustable voltage limit on a relative scale
  • LED indication for relay and power supply ON

    • Description

    DUA01 and PUA01 are precise AC/DC over voltage monitoring relays. They can also be used as 1-phase or 3-phase over current monitoring relays when connected with MI or MP current transformers. Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.


































    Supply: 48 VDC

    Output: SPDT relay

    Mounting: DIN-rail

    Degree of protection: IP20

    Dimensions: 22.5 x 80 x 99.5 mm

    Weight: Approx. 150 g

    For more technical information, please refer to data sheet.










































    If you have any questions about this product please email us at saadwaheed09@gmail.com
