DB1000 - Chino DB1000 Digital Indicating Controller | Combustion Controls - Industrial & Burner Components

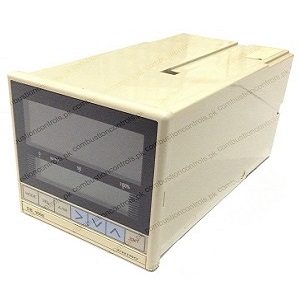

DB1000 - Digital Indicating Controller

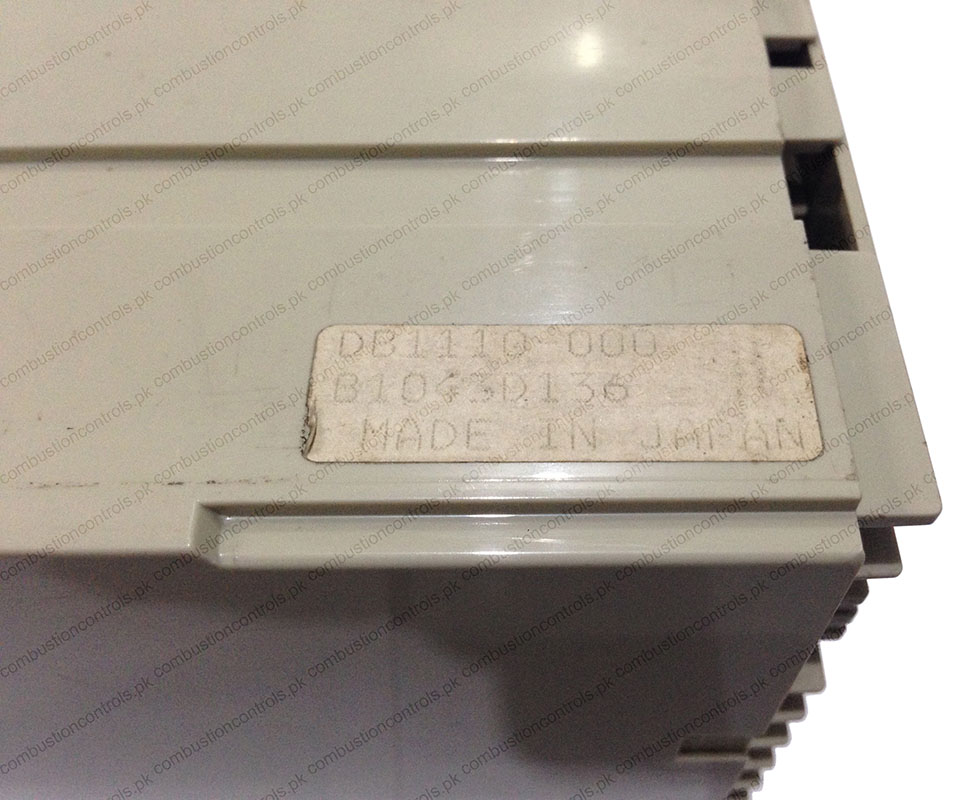

Model code: DB1110-000

Serial number: B1043D136

Power supply: AC100-240V 50/60 Hz

Front size: 96 x 96 mm

Origin: Japan

Price: Available on request

DB 1000 series is Digital Indicating Controller with indicating accuracy of ±0.1%, control cycle of approximately 0.1 seconds and front size of 96 x 96 mm.

Universal input and multi SV (8 type) etc. are various functionalities that are provided as standard provisions. Beside a digital indicator with large easy to view LED display, various settings have an interactive system with high resolution dot matrix LCD display and handling is also easy with precise control.

Alarm specifications

Number of alarm points: 4 points

Alarm types: Absolute value alarm, deviation alarm

Output signal: Relay output signal (a contact)

General specifications

Power supply: AC85-264V 50/60 Hz

Front size: 96 x 96 mm

Mounting bracket (for panel mounting): Not included

Working temperature range: -10 °C to +50 °C

Working humidity range: 10 to 90%RH

Color: Gray

Weight: 450g approx.

Please see data sheet for more description.

If you have any questions about this product please email us at saadwaheed09@gmail.com
