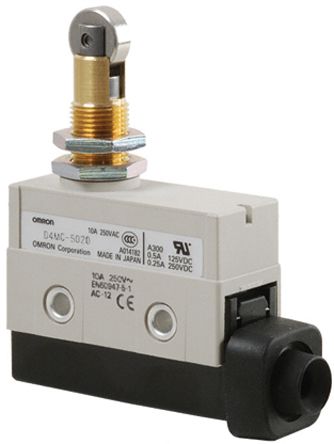

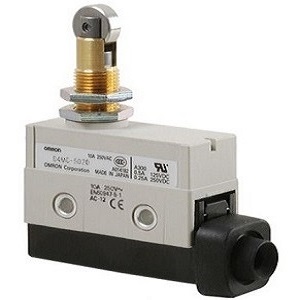

D4MC-5020 - Enclosed Switch

Type: D4MC-5020

Actuator type: Panel mount roller plunger (5020)

Operating force (OF): 5.88 N max.

Release force (RF): 0.98 N min.

Pretravel (PT): 1.6mm max.

Overtravel (OT): 5mm min.

Brand: Omron

Origin: Made in Japan

Condition: New

Quantity in stock: 1 pc

Price: Available on request

D4MC-5020 - Enclosed Switch

  • High precision and long life (10,000,000 mechanical operations) through employment of the moving spring used in Omron Z Basic Switch.
  • Sealed with gasket diaphragm to provide high dealing property without use of any adhesive or pin.
  • Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches.
  • Panel mount versions have the same operating position as Z Basic Switch.
  • Models with grounding terminals conform to the CE marking.
  • Approved by CCC (Chinese standard).




















    • Specifications

    Actuator type: Panel mount roller plunger

    Operating force (OF): 5.88 N max.

    Release force (RF): 0.98 N min.

    Pretravel (PT): 1.6mm max.

    Overtravel (OT): 5mm min.

    Movement differential (MD): 0.2mm max.

    Degree of protection: IP67

    Ambient operating temperature: -10 °C to +80 °C

    For more information on technical data, please see data sheet.





















    If you have any questions about this product please email us at saadwaheed09@gmail.com
