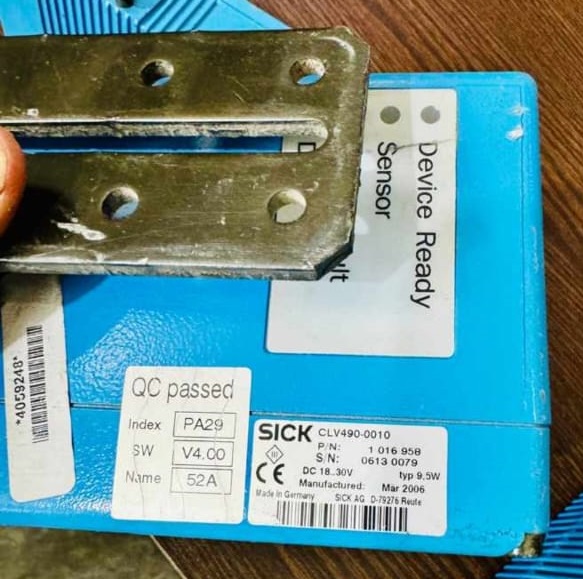

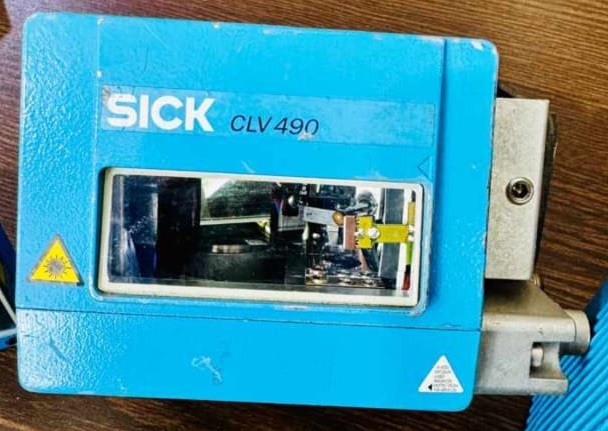

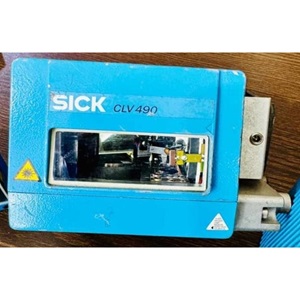

CLV490-0010 - SICK Barcode Scanner

Type: CLV490-0010

Part Number: 1016958

Supply Voltage: 18-30 VDC

Optical Indicators: 4 LEDs (function indicator)

No. of distance configurations: ≤ 8

Focus adjustment time: ≤ 20 ms

Product category: Not defined on our website.

Brand: SICK

Origin: Made in Germany

Condition: Lotted

Availability: 1 - 2 pieces (subject to availability)

Price: Available on request

Product location on website: Brands > SICK > CLV490-0010

1016958 Sick - CLV490-0010

FIXED MOUNT BAR CODE SCANNER, CLV49X, 500-2100 MM READING DISTANCE, 0.25-1 MM CODE RESOLUTION, 600-1200 HZ SCANNING FREQUENCY, 18-30 VDC.


  • Real-time auto focus function
  • Different versions ensure coverage for a variety of module widths
  • Label tilt from -45° to +45°
  • Smallest housing with auto focus and reading range up to 2.2 m
  • External parameter cloning plug
  • An oscillating mirror scanner is also available to cover larger reading areas
  • High scanning frequency of up to 1,200 Hz























    • Part Number: 1016958

    Supply Voltage: 18-30 VDC

    Optical Indicators: 4 LEDs (function indicator)

    Light source: Visible red light (650 nm)

    No. of distance configurations: ≤ 8

    Focus adjustment time: ≤ 20 ms

    Power consumption: 16 W

    Reading field: Front

    Operating temperature: 0 ... +40 °C


    For more information on technical data, please see data sheet.











    If you have any questions about this product please email us at saadwaheed09@gmail.com
