CB3010, CB3010 Labom Pressure Transmitter, CB3010 | Combustion Controls

CB3010 - Pressure Transmitter

Type: CB3010

Measuring Range: 0 - 16 bar

Output Signal: 4 - 20 mA

Functional Voltage: 11...40 VDC

Process Connection: G1/2

Product Category: Pressure Transmitters (listed alphabetically)

Brand: Labom

Condition: New

Stock: Subject to availability

Price: Available on request

Product Location: Products > Pressure Transmitters > CB3010 (listed alphabetically)

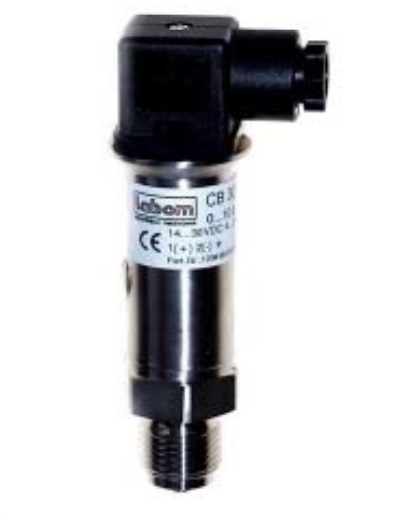

CB3010 Pressure Transmitter

The pressure transmitter is fitted with a ceramic measuring cell as sensor. The measuring signal is converted by the electronics to an impressed current signal of 4-20 mA. Due to their robust design, these transmitters are suited for general industrial applications. The process temperature of up to 100 °C is allowed. Zero-point can be adjusted with an internal trimming potentiometer. The potentiometer may be accessed from outside by loosening a casing screw.

Measuring range 0...16 bar (A1059)

Ceramic cell measuring system

Output signal 4...20 mA

Easy zero-point adjustment

Stainless steel process connection

Process temperature up to 100 °C

CB3010

Measuring Range: 0 - 16 bar

Output signal: 4 - 20 mA

Nominal voltage: 24 VDC

Functional voltage range: 11...40 VDC

Process connection: G1/2

Measuring system: Ceramic cell

Process temperature: -25...+100 °C

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
