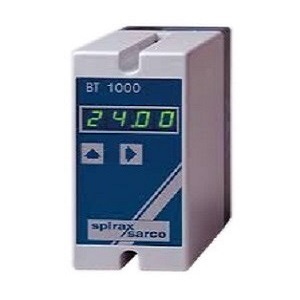

BT1000 - Boiler Blowdown Timer

Type: BT1000

Mains supply: 115 or 230 V

Maximum probe cable length: 100 m (328 ft)

Brand: Spirax Sarco

Condition: Used

Stock: Subject to availability

Price: Available on request

The Spirax Sarco BT1000 blowdown timer is a dual voltage, purpose-designed cyclic timer for the control of blowdown intervals and their duration on steam boilers.

The timer cannot, however, be used to indicate that the valve has opened fully. The BT1000 may also be used to open a small bore valve, e.g. a solenoid valve, on a timed basis to control TDS for those situations where a conductivity system is not wanted or is not possible.




























Specifications

Mains supply: 115 or 230 V

Maximum power consumption: 6 VA

Maximum probe cable length: 100 m (328 ft)

Maximum ambient temperature: 55°C (131 °F)

Minimum ambient temperature: 0°C (32 °F)

Protection rating: IP40

For more information on technical data, please see data sheet.


























If you have any questions about this product please email us at saadwaheed09@gmail.com
