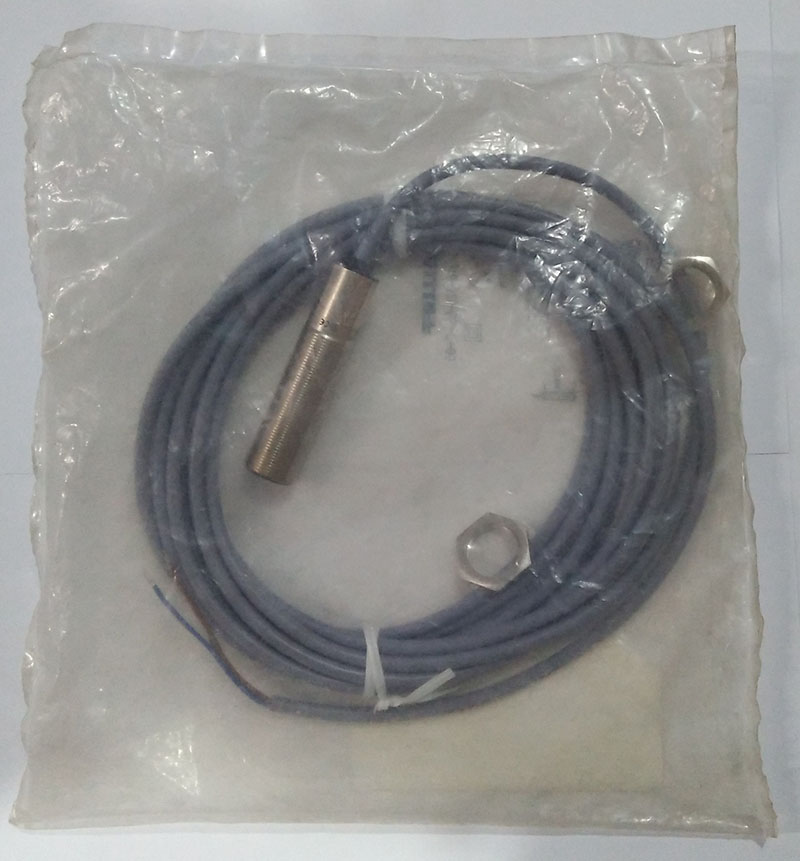

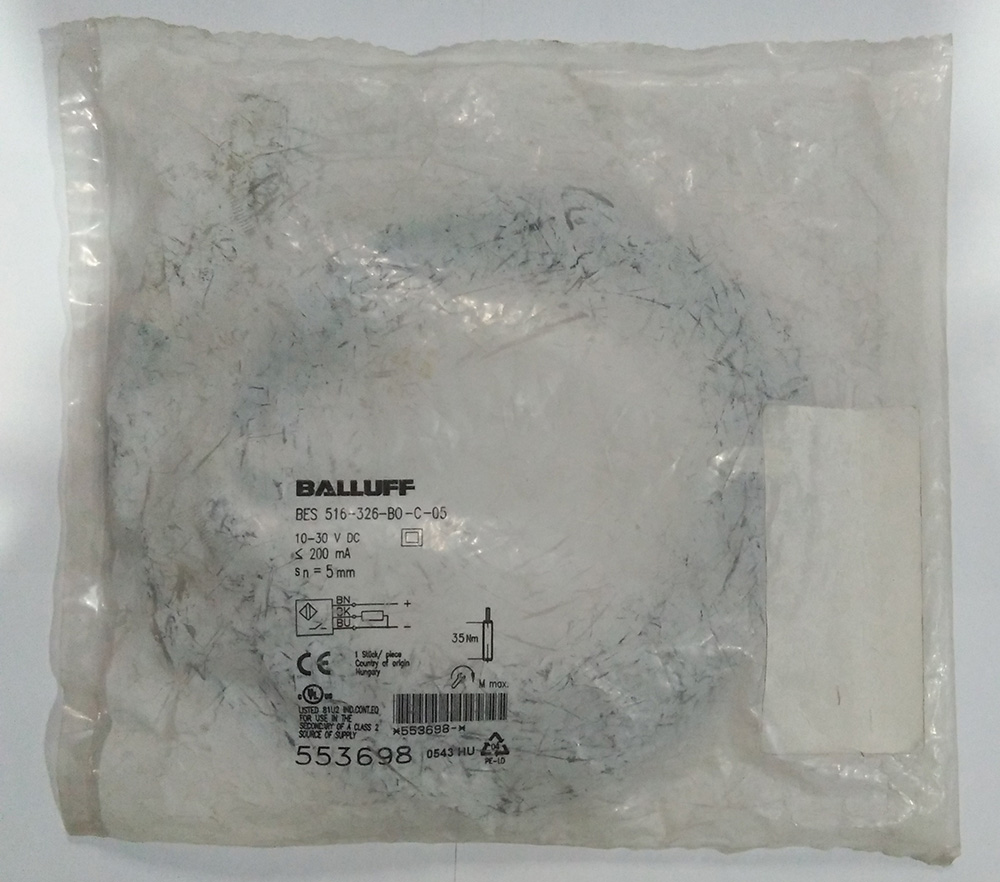

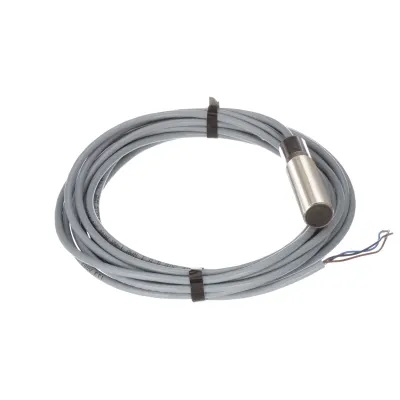

BES 516-326-BO-C-05 - Proximity Sensor

Order code: BES 516-326-BO-C-05

Dimension: Ø 18 x 76.5 mm

Range (Sn): 5 mm

Switching output: PNP Normally open (NO)

Operating voltage Ub: 10...30 VDC

Rated operating current: 200 mA

Product category: Inductive Sensors / Proximity Sensors

Brand: Balluff GmbH (Country of Origin: Hungary)

Condition: New

Qty in Stock: 1 pc

Price: Available on request

Location: Brands > Balluff > BES 516-326-BO-C-05

Balluff GmbH Inductive Sensors

Balluff inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination.




























Switching output: PNP Normally open (NO)

Rated operating distance (Sn): 5 mm

Assured operating distance (Sa): 4 mm

Operating voltage Ub: 10...30 VDC

Function indicator: Yes

Power indicator: No


Polarity reversal protected: Yes

Short-circuit protection: Yes


Housing material: Brass

Material sensing surface: PA 12

Dimension: Ø 18 x 76.5 mm

Installation: for flush mounting

Size: M18x1

Tightening torque: 35 Nm


Operating temperature: -25...+70 °C

Degree of protection: IP68


For more information on technical data, please see data sheet.
