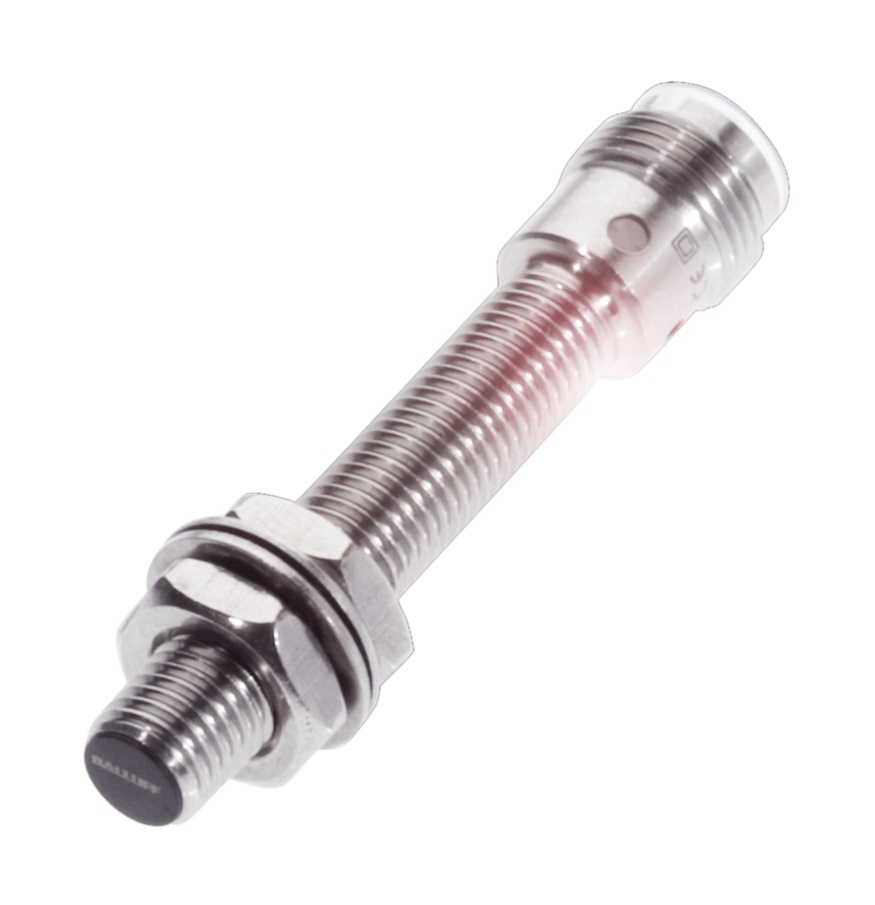

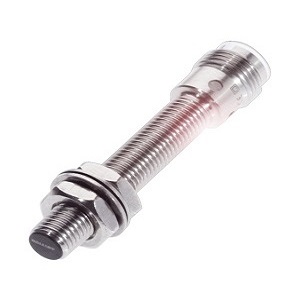

BES M08EH-PSC15B-S04G - Inductive Sensor

Order code: BES01PF / BES M08EH-PSC15B-S04G

Dimension: Ø 8 x 58 mm

Range: 1.5 mm

Switching output: PNP normally open (NO)

Operating voltage Ub: 10...30 VDC

Brand: Balluff

Origin: Hungary

Condition: New

Availability: 5 pcs in stock

Price: Available on request

Balluff GmbH Inductive Sensors

Balluff inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination.




























Switching output: PNP normally open (NO)

Rated operating distance (Sn): 1.5 mm

Assured operating distance (Sa): 1.2 mm

Operating voltage Ub: 10...30 VDC

Function indicator: Yes

Power indicator: No


Electrical connection: M12x1-Male, 4-pin, A-coded

Polarity reversal protected: Yes

Protection against device mix-ups: Yes

Short-circuit protection: Yes


Housing material: Stainless Steel

Material sensing surface: PBT

Dimension: Ø 8 x 58 mm

Installation: for flush mounting

Size: M8x1

Tightening torque: 8 Nm


Operating temperature: -25...+70 °C

Degree of protection: IP68


For more information on technical data, please see data sheet.























If you have any questions about this product please email us at saadwaheed09@gmail.com
