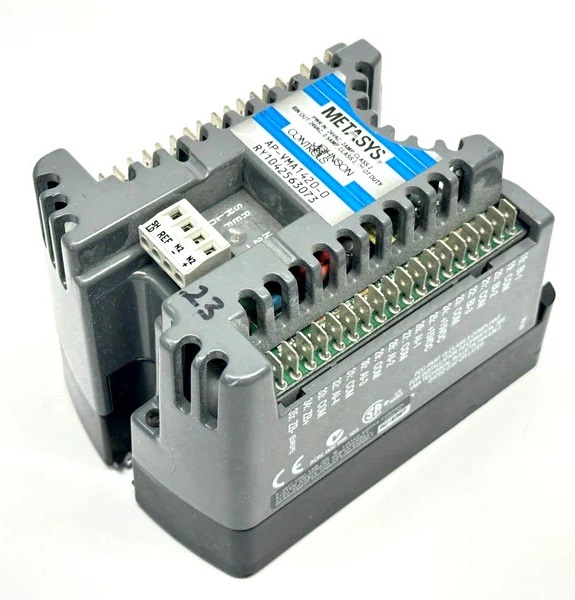

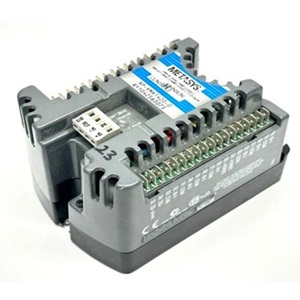

AP-VMA1420-0 - VAV Modular Assembly

Model: AP-VMA1420-0

VMA1420 Model: Cooling with reheat, includes actuator

Supply Voltage: 20-30 VAC at 50 or 60 Hz

Analog Inputs: Four external and one internal

Binary Inputs: Three dry contact binary inputs

Analog Outputs: Two analog outputs

Binary Outputs: Five external binary outputs

Product Category: Actuators (Listed Alphabetically)

Brand: Johnson Controls

Origin: Product of Mexico

Condition: New

Stock: Subject to availability

Price: Available on request

Location: Brands > Johnson Controls > AP-VMA1420-0

AP-VMA1420-0

Eletric Motor Actuator - 35 in-lb/4Nm - 24 VAC/VDC - Proportional - 30 seconds - 90 degree rotation - Cooling with Reheat model.

VMA 1400 Series

The Variable Air Volume (VAV) Modular Assembly (VMA) 1400 Series is a configurable, integrated module that includes a Variable Air Volume (VAV) controller, differential pressure sensor, and, with the exception of the VMA1430, an actuator. This VMA is a set of digital controls that is customizable. For rapid and accurate damper placement, the AP-VMA1420 features an integrated actuator with a stepper motor drive. Part number AP-VMA1420 was designed to have cooling capabilities, as well as reheating capabilities. For faster commissioning, the AP-VMA1420 variable air volume component has a fast response actuator that drives the damper from completely open to fully closed (90°) in 30 seconds. The VMA1420 and 1430 models can be used with parallel or series fan-powered boxes.

There are four external and one internal analog inputs on the VMA1420.
