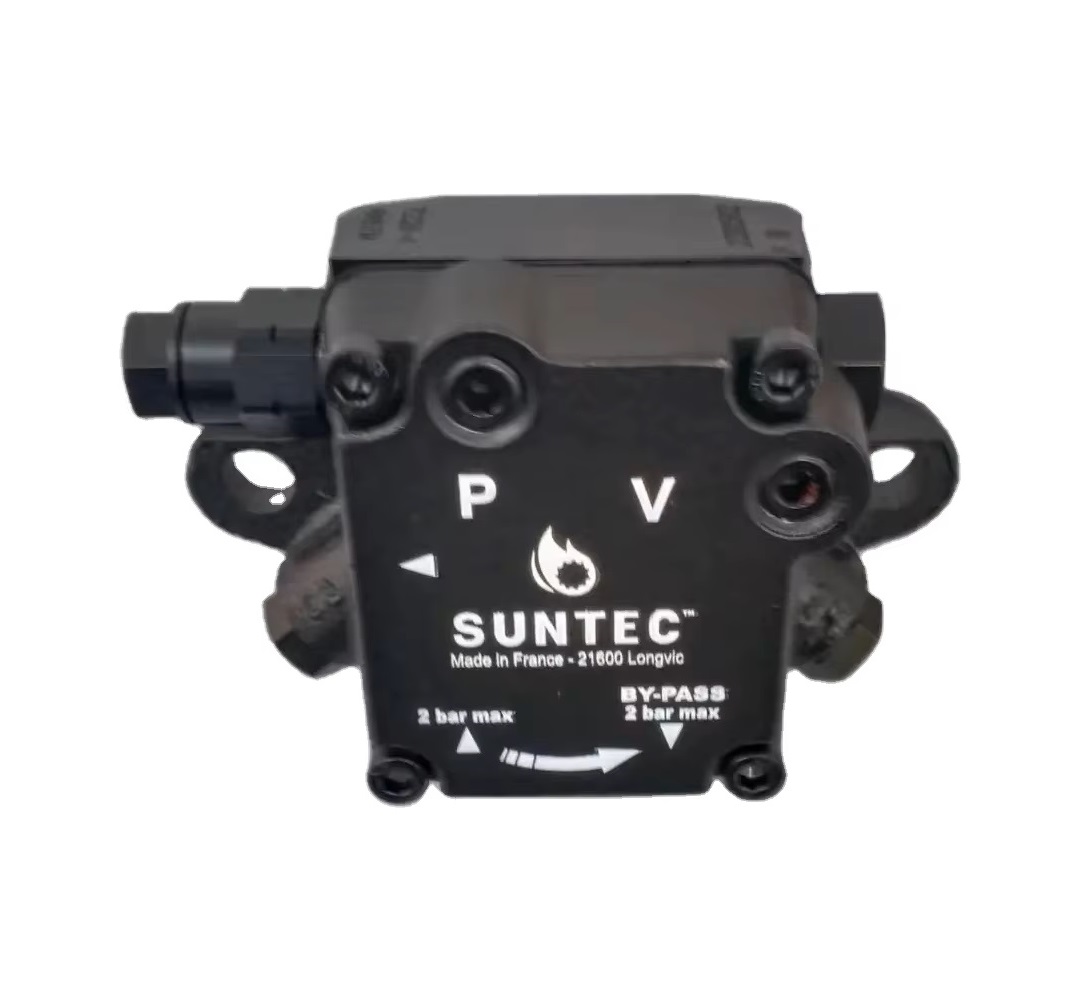

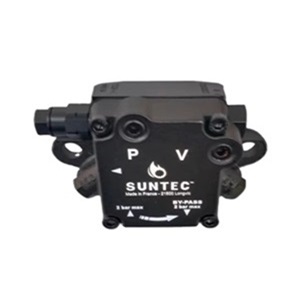

Suntec oil pump AN67A7238

Type: AN67A7238

AN: Basic valve with cut-off

Application: Light oil, B10 heating oil/biofuel blend and kerosene.

Rotation: Clockwise rotation (seen from shaft end)

Nozzle: Right hand nozzle (seen from shaft end)

Hub size: Ø 54 mm

Delivery rate [l/h]: 80 max. @ 5 cSt

Product category: Oil Pumps

Brand: Suntec

Condition: New

Stock: Subject to availability

Price: Available on request

Location on website: Brands > Suntec > AN67A7238

The SUNTEC AN oil pump is the basic model incorporating a pressure regulating valve with cut-off.

Applications

– Light oil, B10 heating oil/biofuel blend (as defined in DIN V51603-6) and kerosene.

– One or two-pipe system

– Normally associated with in-line solenoid valve.

General

Mounting: Flange mounting according to EN 225.

Connection threads: Cylindrical according to ISO 228/1.

Inlet and return: G 1/4

Nozzle outlet: G 1/8

Pressure gauge port: G 1/8

Vacuum gauge port: G 1/8

Shaft: ø 8 mm according to European standard EN 225.

By-pass plug: inserted in return port for two-pipe system; to be removed with a 4 mm Allen key for one pipe system.

Weight: 1.5 kg

Hydraulic data

Nozzle pressure range: 10 - 20 bars @ 5 cSt

Oil temperature: 0 - 60 °C in the pump

Delivery rate [l/h]: 80 max. @ 5 cSt

Rated speed: 3600 rpm max.

If you have any questions about this product please email us at info@combustioncontrols.pk or at saadwaheed2309@gmail.com
