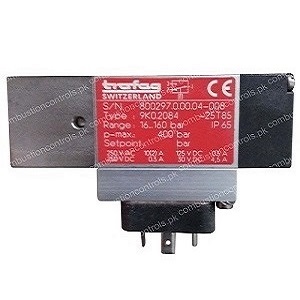

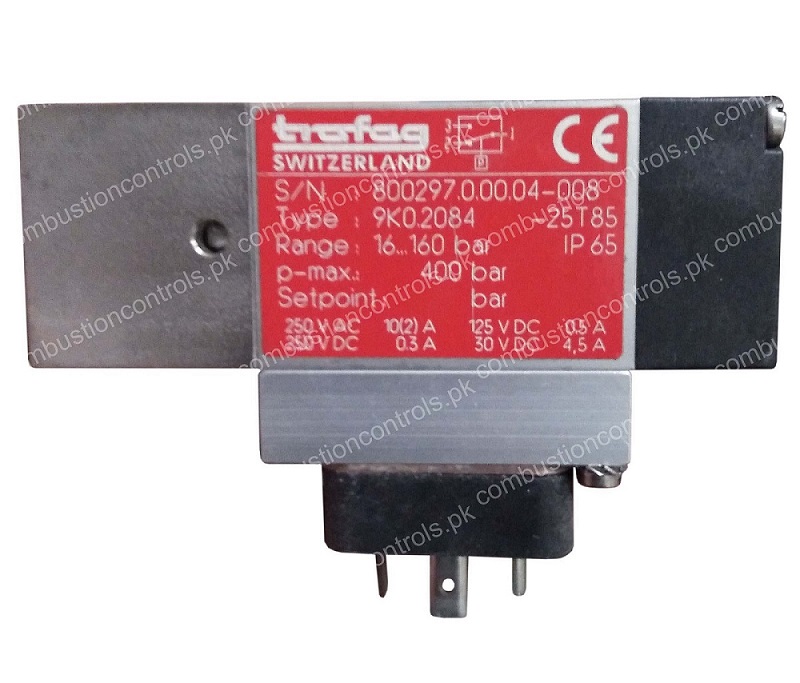

9K0 - Piston Sensor Pressure Switch

Type: 9K0.2084

Sensor: Piston

Measuring range: 16...160 bar

Micro switch: 12...40 bar

Pmax.: 400 bar

Origin: Switzerland

Condition: New

Stock: Subject to availability

DIN-plug: Ordered separately

Price: Available on request

Applications
  • Shipbuilding (ABS, BV, CCS, GL, KRS, LRS, RMRS)
  • Engine manufacturing
  • Railways
  • Machine tools
  • Hydraulics
  • Features
  • Piston sensor
  • Big switching differential
  • Measuring range 16...160 bar
  • Compact design
  • Rugged housing
  • Protection IP65 (with plug connector)
  • Any mounting position



























  • 9K0: Piston sensor

    20: Big switching differential

    84: Piston (759) 16...160 bar

    Measuring range: 16...160 bar

    Micro switch: 12...40 bar

    Pmax.: 400 bar

    Operating temperature: -25...+85 °C

    Media temperature: -25...+120 °C

    Sensor material: Piston with PTFE-sealing

    Sensor housing material: Stainless Steel

    Switching differential: Not adjustable

    Output: Floating change-over contact

    Protection: IP65

    Mounting position: optional

    S/N: 800297.0.00.04-008

    Weight: 320 g

    For more information on technical data, please see data sheet.























    If you have any questions about this product please email us at saadwaheed09@gmail.com
