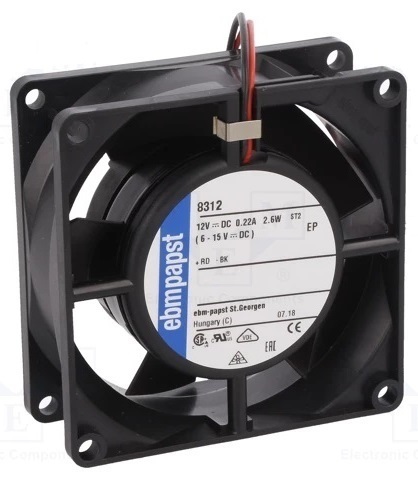

8312 - DC Compact Axial Fan

Type: 8312

Nominal voltage: 12 VDC

Voltage range: 6...15 VDC

Speed: 3300 minˉ¹

Power consumption: 2.6 W

Air flow: 54 m³/h

Dimensions: 80 x 80 x 32 mm

Product category: Axial Fans

Brand: Ebmpapst

Origin: Hungary

Condition: New

Availability: 8 pcs in stock

Price: Available on request

Location: Brands > Ebmpapst > 8312

DC axial compact fan

  • Glass-fiber reinforced PBT plastic housing material

  • Glass-fiber reinforced PA plastic impeller material

  • Air flow 31.8 cfm

  • Compact dimensions with 80 x 80 x 32 mm size

  • Motor protection against reverse polarity and blocked rotor

  • Locked-rotor and overload protection

  • Exhaust over struts

  • 70,000 hours service life L10 at 40 °C

  • Connections via single wiresAWG 22, TR 64


























    • Type: 8312

    Nominal voltage: 12 VDC

    Voltage range: 6...15 VDC

    Speed: 3300 minˉ¹

    Power consumption: 2.6 W

    Air flow: 54 m³/h

    Air flow: 31.8 cfm

    Dimensions: 80 x 80 x 32 mm

    Direction of rotation: Clockwise, viewed toward rotor

    Ambient temperature: -20 to +75 °C

    Sound pressure level: 36 dB(A)

    Weight: 0.170 kg

    For more information on technical data, please see technical data sheet.























    If you have any questions about this product please email us at saadwaheed09@gmail.com
