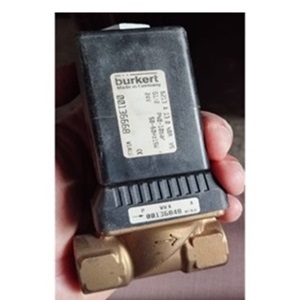

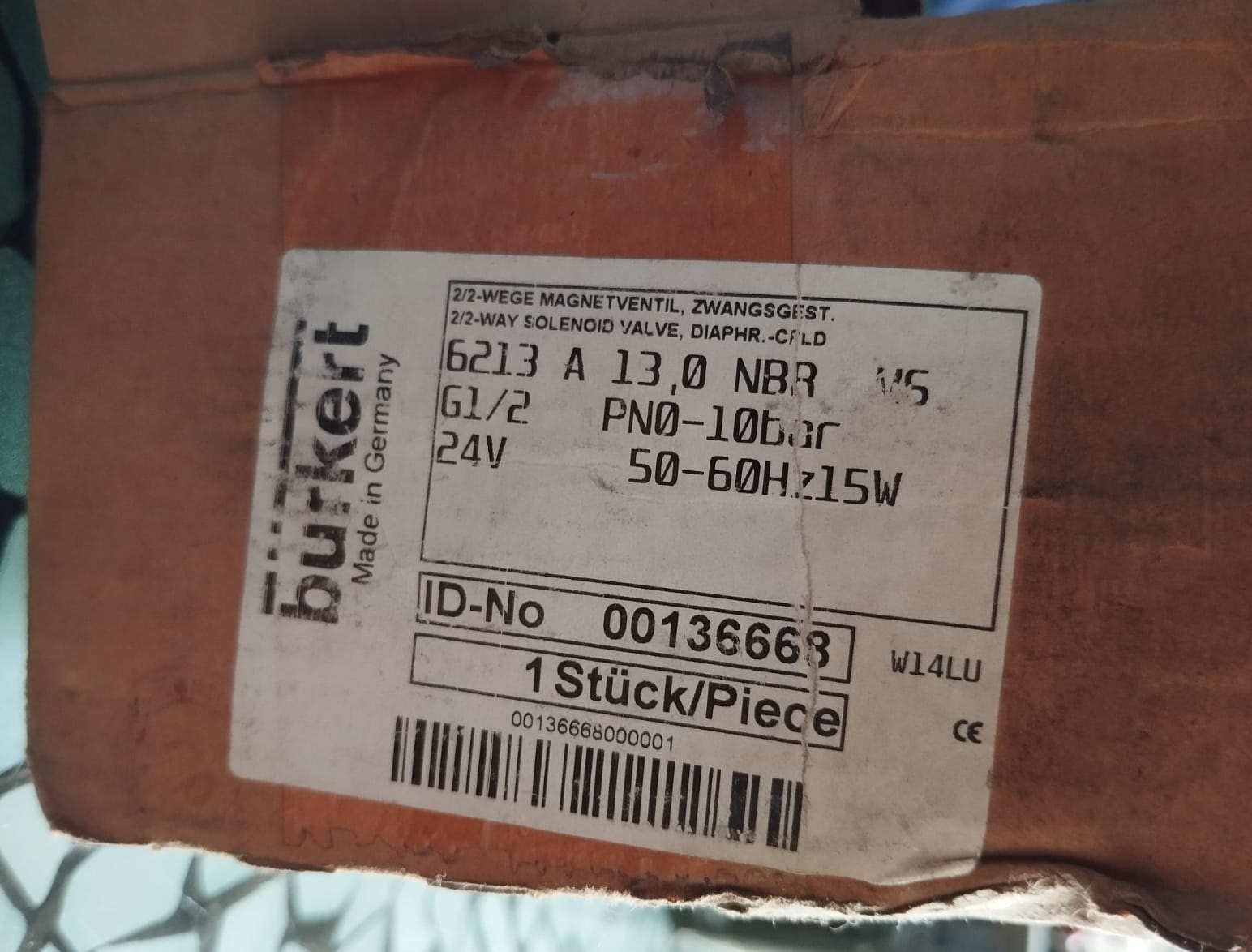

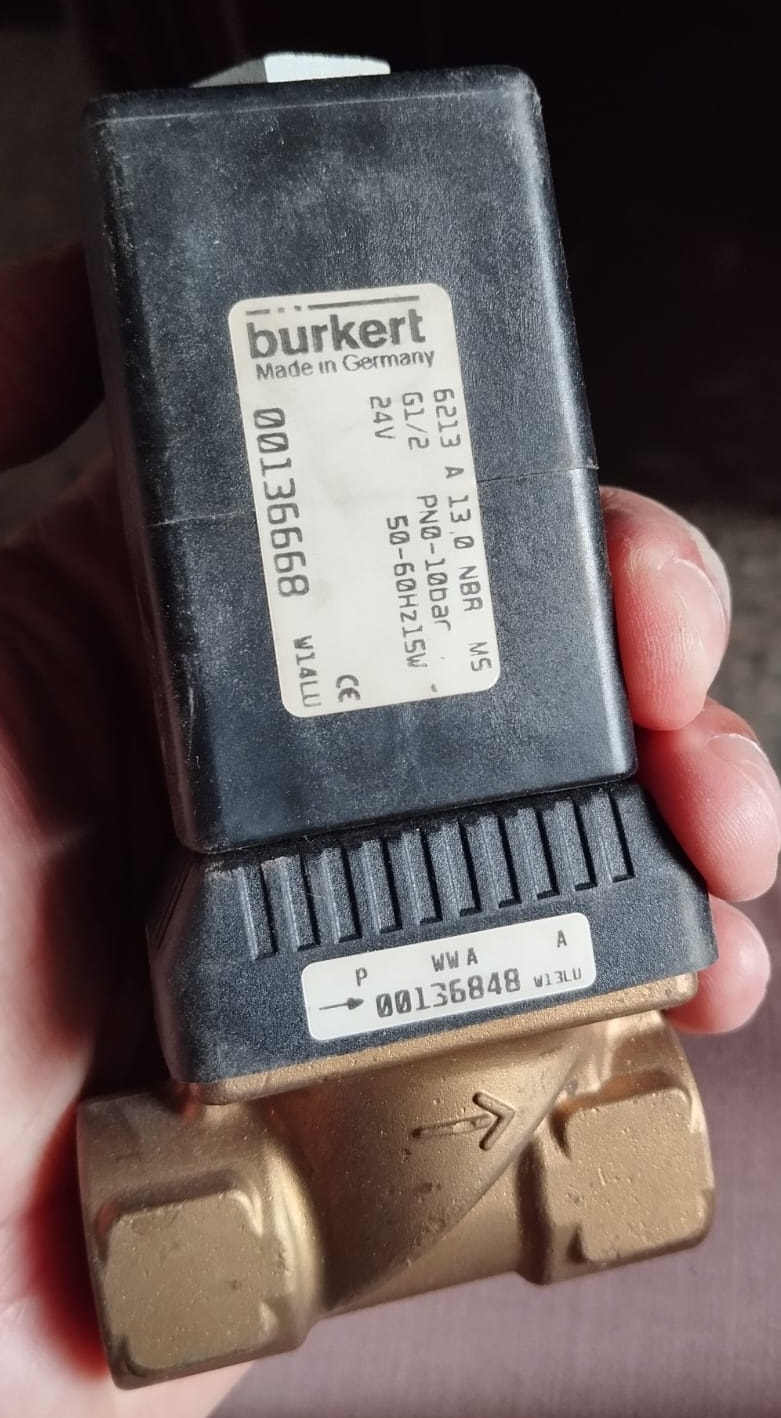

6213 - Solenoid Valve for Fluids

Type: 6213

ID-No.: 00136668

Circuit function: 2/2-way, servo-controlled, normally closed

Port connection: G 1/2

Pressure range: 0 - 10 bar

Votlage: 24 VAC 50/60 Hz

Product category: Solenoid Valves

Brand: Burkert

Origin: Made in Germany

Condition: New

Stock: 1 piece (subject to availability)

Price: Available on request

Location on website: Brands > Burkert > 6213

Description - Type 6213

Valve 6213 EV is a servo-assisted diaphragm valve. The spring coupling of the diaphragm supports the opening process in the valve. In its standard variant, the valve is suitable for deployment with liquids. A minimum differential pressure is required for full opening.

  • Servo-assisted diaphragm valve
  • Standard version with brass body
  • Spring coupled diaphragm opens without differential pressure
  • 2/2-way, servo-controlled, normally closed solenoid valve
  • High flow rate with compact design

    • Circuit function: 2/2-way solenoid valve, servo-controlled, normally closed

    Votlage: 24 VAC 50/60 Hz

    Power consumption: 15 W

    Orific: 12 mm

    Port connection: G 1/2

    Pressure range: 0...10 bar

    Seal material: NBR

    Operating medium (NBR): Neutral liquids (e.g. water, hydraulic oil, oil without additives)

    Medium temperature (NBR): -10°C to +80°C

    Body material: Brass

    For more information on technical data, please see data sheet.
