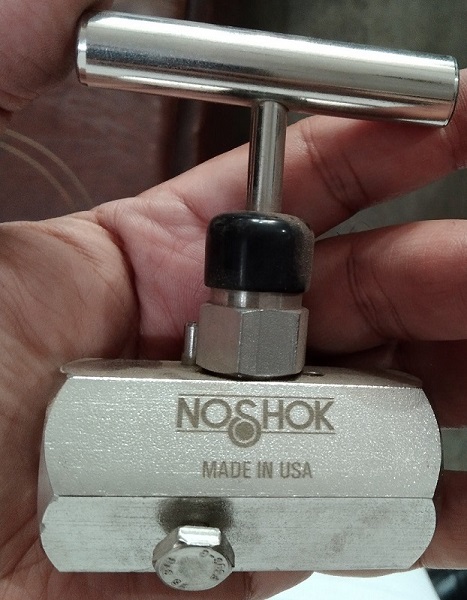

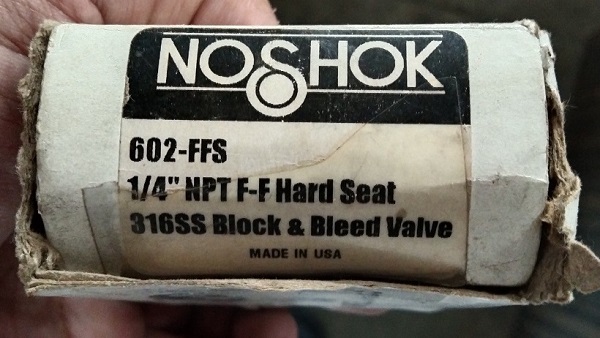

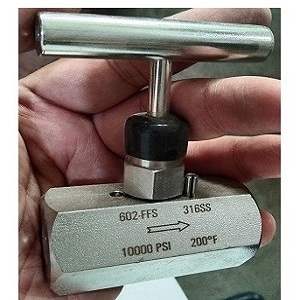

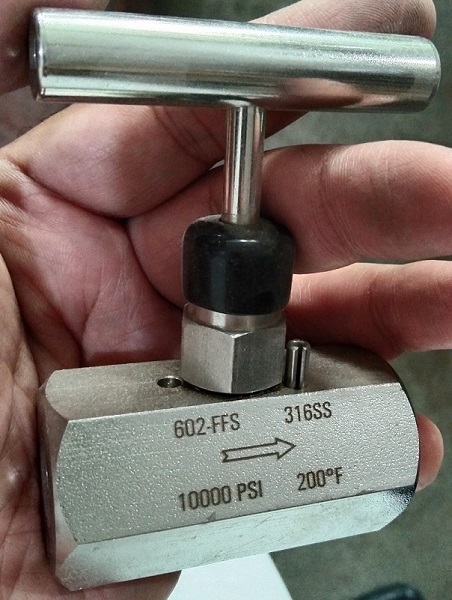

602-FFS Noshok Block & Bleed Needle Valve, 602-FFS

602-FFS - Block & Bleed Needle Valve

Type: 602-FFS

Series: 600 Series, hard seat

Connection: 1/4" NPT

Valve type : Female-Female, Stainless Steel (FFS)

Pressure rating: 10,000 psi @ 200 °F

Product Category: Needle Valves

Brand: Noshok

Origin: Made in USA

Condition: New

Stock: 1 pc (subject to availability)

Price: Available on request

600 Series - Blcok & Bleed Needle Valves

Block & bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments.

100% helium leak tested to 1 x 10¯⁴ ml/s for performance and reliability.

Blow-out proof stem provides a secondary stem seal in the full open position.

FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional.

All stem threads are rolled for strength and ease of operation.

One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads.

Slotted spring pin to prevent accidental loosening.

Vinyl dust cap for bonnet and stem

0.090" bleed hole located on the bottom is controlled by a 1/4"-20 UNF-2A bleed screw.

Series: 600 Series, hard seat

Materials: Zinc-Nickle plated Steel, electropolished 316 Stainless Steel

Connection: 1/4" NPT

Valve type : Female-Female, Stainless Steel (FFS)

Pressure rating: 10,000 psi @ 200 °F

Orifice size: 0.187"

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
