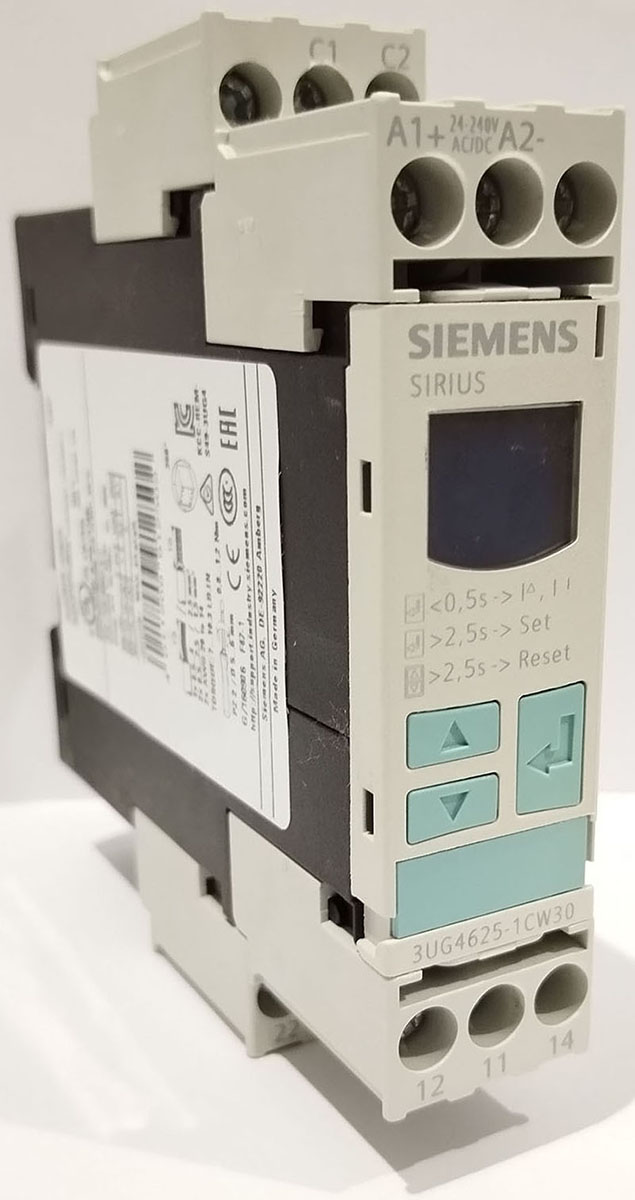

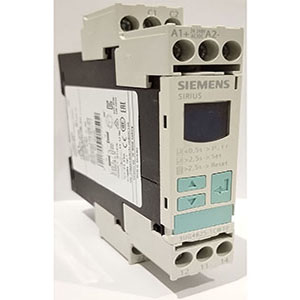

3UG4625-1CW30 - Current Monitoring Relay

Type: 3UG4625-1CW30

Designation: Residual current monitoring relay with digital setting

Rated insulation voltage: 300 V

Control supply voltage: 24 ... 240 V AC/DC

Rated surge voltage resistance: 4 kV

Product category: Current Relays

Brand: Siemens

Condition: New

Qty in stock: 1 piece

Price: Available on request

Location: Brands > Siemens > 3UG4625-1CW30 (listed alphabetically)

3UG4625-1CW30

Digital monitoring relay for residual current monitoring (with current transformer 3UL23). Setting range 0.03...40 A separate for warning threshold and switch-off value. Supply voltage 24...240 V AC/DC, 50/60Hz. ON delay and tripping delay 0.1 to 20 s. Shutdown hysteresis up to 50%. Warning hysteresis 5% fixed. Width 22.5 mm, 2 change-over contacts with or without fault buffer.


































Control supply voltage: 24 ... 240 V AC/DC

Design of the display: LCD

Insulation voltage rated value: 300 V

Type of supply voltage: AC/DC

Surge voltage resistance rated value: 4 kV

Type of current for monitoring: AC

Measurable current: 10 mA ... 43 A

Adjustable operating delay time: 0.1 ... 20 s

Changeover (CO) contacts: 2

Weight: Approx. 150 g

For more technical information, please refer to data sheet.










































If you have any questions about this product please email us at saadwaheed09@gmail.com
