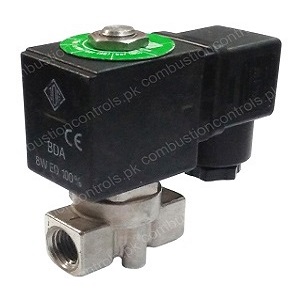

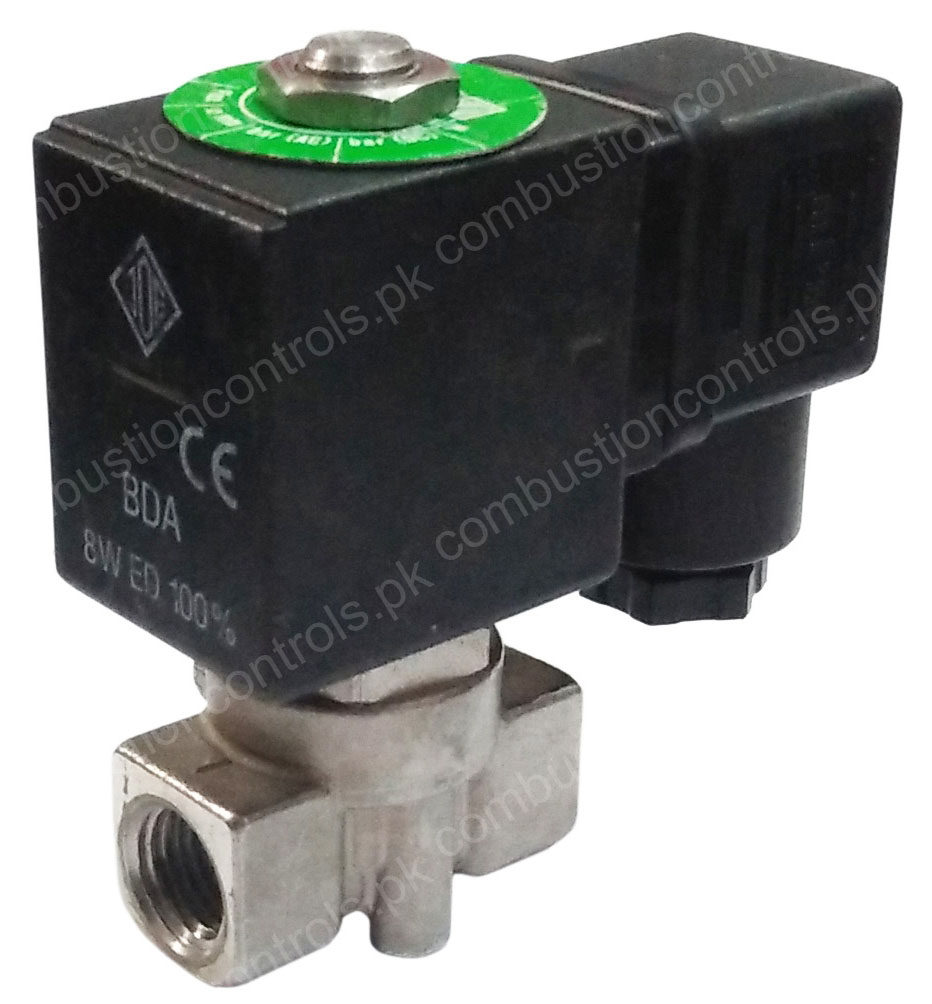

21L2K1T25 - 2-Way NC SS Solenoid Valve

Code: 21L2K1T25

Pipe connection: G 1/4

Max. allowable pressure: 40 bar

Pressure range: 0 - 14 bar

Orific: Ø 2.5 mm

Votlage: 220-230VAC 50/60Hz

Brand: ODE, Italy

Condition: Used

DIN connector: Ordered separately

Price: Available on request

Direct acting solenoid valve for interception of fluids compatible with the construction materials. Minimum operational pressure is not required. The materials used and the tests carried out ensure maximum reliability and duration.

Pipe connection: G 1/4 (ISO 228/1)

Orific: Ø 2.5 mm

Coil: 8 W - Ø 13 - BDA - 155°C (class F)

Max. allowable pressure: 40 bar

Pressure range: 0 - 14 bar

Body material: Stainless steel AISI 316

Seal: T=PTFE (polytetrafluorethylen)

Medium: Demineralized water, steam, syrups, chemical products compatible with stainless steel.

Media temperature: -40 to +180°C

Ambient temperature: -40°C to +60°C

Max. viscosity: 53 cSt

For more information on technical data, please see data sheet.

If you have any questions about this product please email us at saadwaheed09@gmail.com
