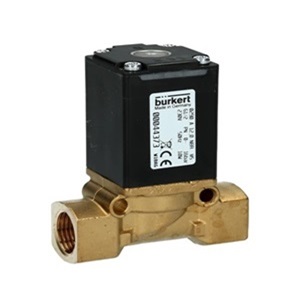

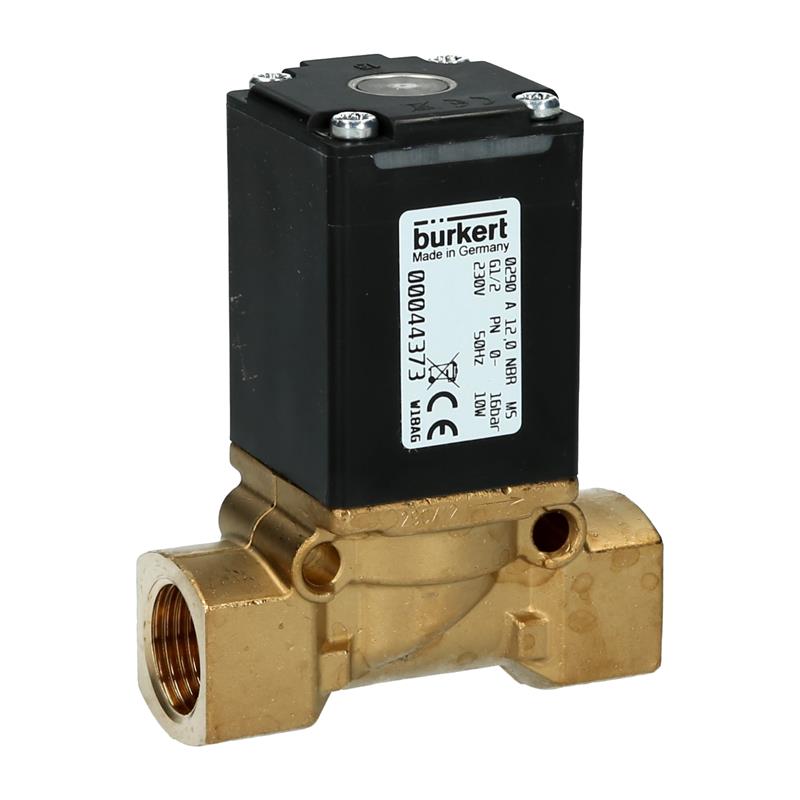

Description - Type 0290
The 0290 valve is a servo-assisted diaphragm valve of the S.EV series. The valve opens without differential pressure. The opening process is facilitated by the fix coupling of the diaphragm to the magnetic core. The integrated 'soft-kick' function ensures gentle opening. Various diaphragm materials are available depending on the actual application. Stainless steel body variants complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. A 'kick and drop' electronics assembly is moulded into the coil of all DC variants to reduce electrical power consumption.
Servo-assisted diaphragm valve
Standard version with brass body
Fix-coupled diaphragm opens without differential pressure
2/2-way, servo-controlled, normally closed solenoid valve
Vibration-proof, block screwed coil system
Type 2508 cable plug (Included)
Circuit function: 2/2-way solenoid valve, servo-controlled, normally closed
Orific: 12 mm
Port connection: G 1/2
Pressure range: 0...16 bar
Seal material: NBR
Body material: Brass, stainless steel 1.4581
Media: Neutral fluids, water, hydraulic oil, oil without additives
Operating medium: Neutral media (e.g. compressed air, water, hydraulic oil, oils without additives)
Medium temperature: -10°C to +80°C
Cable plug: Type 2508 (Included)
For more information on technical data, please see data sheet.
